FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|---|

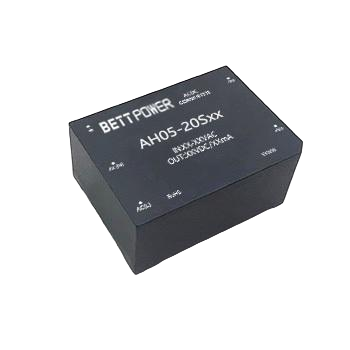

| AH05-20Sxx |  |
5 | 85～265 | 100～375 | 5,12,15,24 | DIP | 4000VAC | 48.50 * 36.00 * 20.50 | |
| AH05-20S05 | |
5 | 85～265 | 100～375 | 5 | DIP | 4000VAC | 48.50 * 36.00 * 20.50 | |
| AH05-20S12 | |
5 | 85～265 | 100～375 | 12 | DIP | 4000VAC | 48.50 * 36.00 * 20.50 | |
| AH05-20S15 | |
5 | 85～265 | 100～375 | 15 | DIP | 4000VAC | 48.50 * 36.00 * 20.50 | |
| AH05-20S24 | |
5 | 85～265 | 100～375 | 24 | DIP | 4000VAC | 48.50 * 36.00 * 20.50 | |

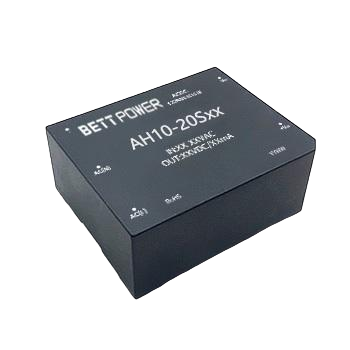

| AH10-20Sxx |  |
10 | 85～265 | 100～375 | 5,12,15,24 | DIP | 4000VAC | 55.00 * 45.00 * 21.00 | |
| AH10-20S05 | |
10 | 85～265 | 100～375 | 5 | DIP | 4000VAC | 55.00 * 45.00 * 21.00 | |
| AH10-20S12 | |
10 | 85～265 | 100～375 | 12 | DIP | 4000VAC | 55.00 * 45.00 * 21.00 | |
| AH10-20S15 | |
10 | 85～265 | 100～375 | 15 | DIP | 4000VAC | 55.00 * 45.00 * 21.00 | |
| AH10-20S24 | |
10 | 85～265 | 100～375 | 24 | DIP | 4000VAC | 55.00 * 45.00 * 21.00 | |

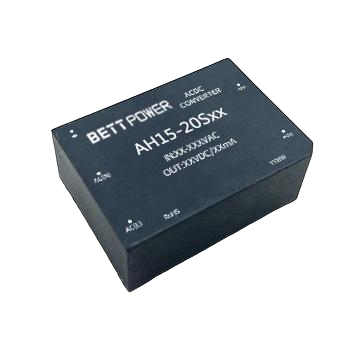

| AH15-20Sxx |  |
15 | 85～265 | 100～375 | 5,12,15,24 | DIP | 4000VAC | 62.00 * 45.00 * 22.50 | |
| AH15-20S05 | |
15 | 85～265 | 100～375 | 5 | DIP | 4000VAC | 62.00 * 45.00 * 22.50 | |
| AH15-20S12 | |
15 | 85～265 | 100～375 | 12 | DIP | 4000VAC | 62.00 * 45.00 * 22.50 | |
| AH15-20S15 | |
15 | 85～265 | 100～375 | 15 | DIP | 4000VAC | 62.00 * 45.00 * 22.50 | |
| AH15-20S24 | |
15 | 85～265 | 100～375 | 24 | DIP | 4000VAC | 62.00 * 45.00 * 22.50 | |

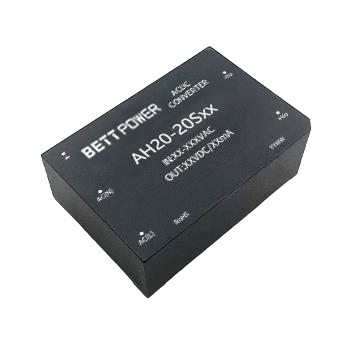

| AH20-20Sxx |  |
20 | 85～265 | 100～375 | 5,12,15,24 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH20-20S05 | |
20 | 85～265 | 100～375 | 5 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH20-20S12 | |
20 | 85～265 | 100～375 | 12 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH20-20S15 | |
20 | 85～265 | 100～375 | 15 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH20-20S24 | |
20 | 85～265 | 100～375 | 24 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH25-20Sxx |  |
25 | 85～265 | 100～375 | 5,12,15,24 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH25-20S05 | |
25 | 85～265 | 100～375 | 5 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH25-20S12 | |
25 | 85～265 | 100～375 | 12 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH25-20S15 | |
25 | 85～265 | 100～375 | 15 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH25-20S24 | |
25 | 85～265 | 100～375 | 24 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH30-20Sxx |  |
30 | 85～265 | 100～375 | 5,12,15,24 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH30-20S05 | |
30 | 85～265 | 100～375 | 5 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH30-20S12 | |
30 | 85～265 | 100～375 | 12 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH30-20S15 | |
30 | 85～265 | 100～375 | 15 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 | |
| AH30-20S24 | |
30 | 85～265 | 100～375 | 24 | DIP | 4000VAC | 70.00 * 48.00 * 23.50 |
* For reference only. The detailed info please refer to the datasheet.
