> DC-DC Wide Voltage Input And Stable Output (1-500W)
> 2:1 DIP Package V-LD Series (10-60W)
FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|

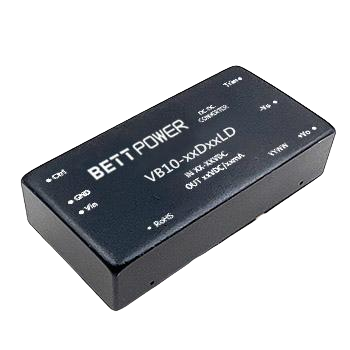

| VB10-xxDxxLD |  |
10 | 9～36 | ±5,±9,±12,±15,±24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24D05LD | |
10 | 9～36 | ±5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24D09LD | |
10 | 9～36 | ±9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24D12LD | |
10 | 9～36 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24D15LD | |
10 | 9～36 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24D24LD | |
10 | 9～36 | ±24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |

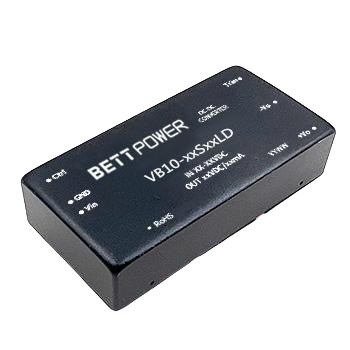

| VB10-xxSxxLD |  |
10 | 9～75 | 3.3,5,9,12,15,24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24S03LD | |
10 | 9～36 | 3.3 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-48S03LD | |
10 | 18～75 | 3.3 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24S05LD | |
10 | 9～36 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24S09LD | |
10 | 9～36 | 9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-12S12LD | |
10 | 4.5～18 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24S12LD | |
10 | 9～36 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24S15LD | |
10 | 9～36 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB10-24S24LD | |
10 | 9～36 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-xxDxxLD |  |
15 | 9～75 | ±5,±9,±12,±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24D05LD | |
15 | 9～36 | ±5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24D09LD | |
15 | 9～36 | ±9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24D12LD | |
15 | 9～36 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24D15LD | |
15 | 9～36 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48D05LD | |
15 | 18～75 | ±5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48D12LD | |
15 | 18～75 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48D15LD | |
15 | 18～75 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-xxSxxLD |  |
15 | 9～75 | 3.3,5,9,12,15,24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24S03LD | |
15 | 9～36 | 3.3 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48S03LD | |
15 | 18～75 | 3.3 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24S05LD | |
15 | 9～36 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48S05LD | |
15 | 18～75 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24S09LD | |
15 | 9～36 | 9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48S09LD | |
15 | 18～75 | 9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24S12LD | |
15 | 9～36 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48S12LD | |
15 | 18～75 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24S15LD | |
15 | 9～36 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48S15LD | |
15 | 18～75 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-24S24LD | |
15 | 9～36 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB15-48S24LD | |
15 | 18～75 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-xxDxxLD |  |
20 | 9～75 | ±5,±9,±12,±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24D05LD | |
20 | 9～36 | ±5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24D09LD | |
20 | 9～36 | ±9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24D12LD | |
20 | 9～36 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24D15LD | |
20 | 9～36 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48D05LD | |
20 | 18～75 | ±5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48D12LD | |
20 | 18～75 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48D15LD | |
20 | 18～75 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |

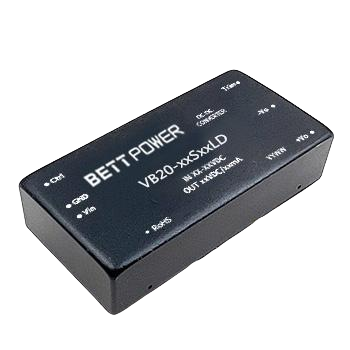

| VB20-xxSxxLD |  |
20 | 9～75 | 3.3,5,9,12,15,24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24S03LD | |
20 | 9～36 | 3.3 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48S03LD | |
20 | 18～75 | 3.3 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24S05LD | |
20 | 9～36 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48S05LD | |
20 | 18～75 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24S09LD | |
20 | 9～36 | 9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48S09LD | |
20 | 18～75 | 9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24S12LD | |
20 | 9～36 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48S12LD | |
20 | 18～75 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24S15LD | |
20 | 9～36 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48S15LD | |
20 | 18～75 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-24S24LD | |
20 | 9～36 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB20-48S24LD | |
20 | 18～75 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-xxDxxLD |  |
30 | 9～75 | ±5,±12,±15,±24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24D05LD | |
30 | 9～36 | ±5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24D12LD | |
30 | 9～36 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24D15LD | |
30 | 9～36 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24D24LD | |
30 | 9～36 | ±24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-48D05LD | |
30 | 18～75 | ±5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-48D12LD | |
30 | 18～75 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-48D15LD | |
30 | 18～75 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-48D24LD | |
30 | 18～75 | ±24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-xxSxxLD |  |
30 | 9～75 | 3.3,5,7,9,12,15,24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24S05LD | |
30 | 9～36 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-48S05LD | |
30 | 18～75 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24S07LD | |
30 | 9～36 | 7 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24S09LD | |
30 | 9～36 | 9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24S12LD | |
30 | 9～36 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-48S12LD | |
30 | 18～75 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24S15LD | |
30 | 9～36 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-48S15LD | |
30 | 18～75 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-24S24LD | |
30 | 9～36 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB30-48S24LD | |
30 | 18～75 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |

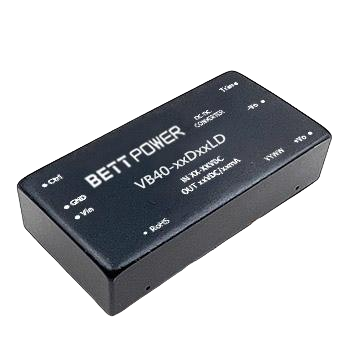

| VB40-xxDxxLD |  |
40 | 9～75 | ±12,±15,±24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-24D12LD | |
40 | 9～36 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-24D15LD | |
40 | 9～36 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-24D24LD | |
40 | 9～36 | ±24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-48D12LD | |
40 | 18～75 | ±12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-48D15LD | |
40 | 18～75 | ±15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-48D24LD | |
40 | 18～75 | ±24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-xxSxxLD |  |
40 | 9～75 | 5,9,12,15,24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-24S05LD | |
40 | 9～36 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-48S05LD | |
40 | 18～75 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-24S09LD | |
40 | 9～36 | 9 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-24S12LD | |
40 | 9～36 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-48S12LD | |
40 | 18～75 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-24S15LD | |
40 | 9～36 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-48S15LD | |
40 | 18～75 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-24S24LD | |
40 | 9～36 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB40-48S24LD | |
40 | 18～75 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 12.00 | |
| VB60-xxSxxLD |  |
60 | 9～75 | 5,12,15,24 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB60-24S05LD | |
60 | 9～36 | 5 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB60-48S05LD | |
60 | 18～75 | 5 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB60-24S12LD | |
60 | 9～36 | 12 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB60-48S12LD | |
60 | 18～75 | 12 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB60-24S15LD | |
60 | 9～36 | 15 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB60-48S15LD | |
60 | 18～75 | 15 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB60-24S24LD | |
60 | 9～36 | 24 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB60-48S24LD | |
60 | 18～75 | 24 | 2:1DIP | 1600VDC | 50.80 * 25.40 * 11.80 | |
| VB80-xxSxxLD |  |
80 | 9～75 | 3.3,5,12,15,24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-24S03LD | |
80 | 9～36 | 3.3 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-48S03LD | |
80 | 18～75 | 3.3 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-24S05LD | |
80 | 9～36 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-48S05LD | |
80 | 18～75 | 5 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-24S12LD | |
80 | 9～36 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-48S12LD | |
80 | 18～75 | 12 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-24S15LD | |
80 | 9～36 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-48S15LD | |
80 | 18～75 | 15 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-24S24LD | |
80 | 9～36 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 | |
| VB80-48S24LD | |
80 | 18～75 | 24 | 2:1DIP | 1500VDC | 50.80 * 25.40 * 11.80 |
* For reference only. The detailed info please refer to the datasheet.
