FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|

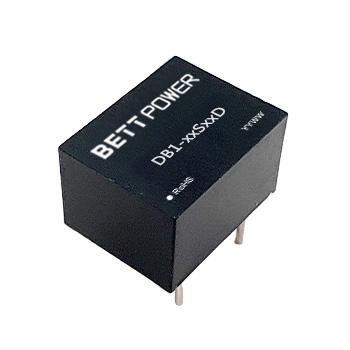

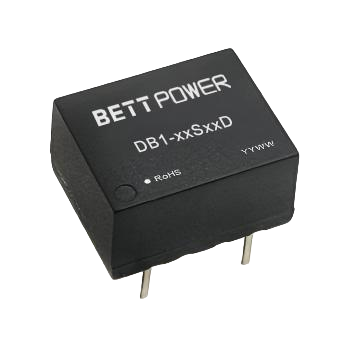

| DB1-xxSxxD |  |
1 | 5,12,15,24 | 3.3,5,9,12,15,24 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-03S03D | |
1 | 3.3 | 3.3 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-05S03D | |
1 | 5 | 3.3 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-12S03D | |
1 | 12 | 3.3 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-15S03D | |
1 | 15 | 3.3 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-24S03D | |
1 | 24 | 3.3 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-03S05D | |
1 | 3.3 | 5 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-05S05D | |
1 | 5 | 5 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-12S05D | |
1 | 12 | 5 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-15S05D | |
1 | 15 | 5 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-24S05D | |
1 | 24 | 5 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-03S09D | |
1 | 3.3 | 9 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-05S09D | |
1 | 5 | 9 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-09S09D | |
1 | 9 | 9 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-12S09D | |
1 | 12 | 9 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-15S09D | |
1 | 15 | 9 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-24S09D | |
1 | 24 | 9 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-03S12D | |
1 | 3.3 | 12 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-05S12D | |
1 | 5 | 12 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-12S12D | |
1 | 12 | 12 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-15S12D | |
1 | 15 | 12 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-24S12D | |
1 | 24 | 12 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-03S15D | |
1 | 3.3 | 15 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-05S15D | |
1 | 5 | 15 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-12S15D | |
1 | 12 | 15 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-15S15D | |
1 | 15 | 15 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-24S15D | |
1 | 24 | 15 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-03S24D | |
1 | 3.3 | 24 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-05S24D | |
1 | 5 | 24 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-12S24D | |
1 | 12 | 24 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-15S24D | |
1 | 15 | 24 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DB1-24S24D | |
1 | 24 | 24 | DIP7 | 1500VDC | 12.70 * 10.10 * 7.00 | |
| DF1-xxDxxD |  |
1 | 5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05D03D | |
1 | 5 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05D05D | |
1 | 5 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05D09D | |
1 | 5 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05D12D | |
1 | 5 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05D15D | |
1 | 5 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05D24D | |
1 | 5 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12D03D | |
1 | 12 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12D05D | |
1 | 12 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12D09D | |
1 | 12 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12D12D | |
1 | 12 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12D15D | |
1 | 12 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12D24D | |
1 | 12 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15D03D | |
1 | 15 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15D05D | |
1 | 15 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15D09D | |
1 | 15 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15D12D | |
1 | 15 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15D15D | |
1 | 15 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15D24D | |
1 | 15 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24D03D | |
1 | 24 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24D05D | |
1 | 24 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24D09D | |
1 | 24 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24D12D | |
1 | 24 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24D15D | |
1 | 24 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24D24D | |
1 | 24 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |

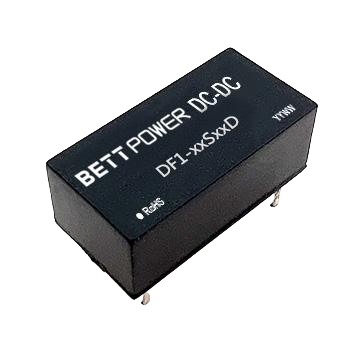

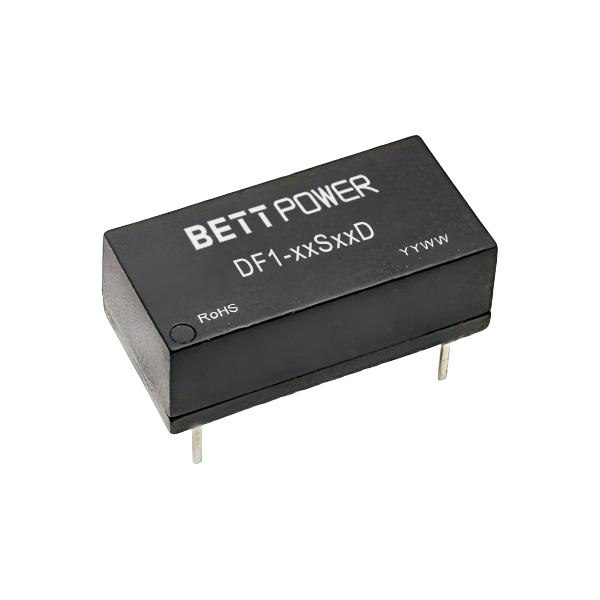

| DF1-xxSxxD |  |
1 | 3.3,5,12,15,24 | 3.3,5,12,15,24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-03S03D | |
1 | 3.3 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05S03D | |
1 | 5 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12S03D | |
1 | 12 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15S03D | |
1 | 15 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24S03D | |
1 | 24 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-03S05D | |
1 | 3.3 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05S05D | |
1 | 5 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12S05D | |
1 | 12 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15S05D | |
1 | 15 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24S05D | |
1 | 24 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-03S09D | |
1 | 3.3 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05S09D | |
1 | 5 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12S09D | |
1 | 12 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15S09D | |
1 | 15 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24S09D | |
1 | 24 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-03S12D | |
1 | 3.3 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05S12D | |
1 | 5 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12S12D | |
1 | 12 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15S12D | |
1 | 15 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24S12D | |
1 | 24 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-03S15D | |
1 | 3.3 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05S15D | |
1 | 5 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12S15D | |
1 | 12 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15S15D | |
1 | 15 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24S15D | |
1 | 24 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-03S24D | |
1 | 3.3 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-05S24D | |
1 | 5 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-12S24D | |
1 | 12 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-15S24D | |
1 | 15 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF1-24S24D | |
1 | 24 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |

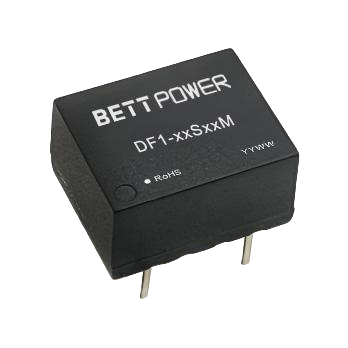

| DF1-xxSxxM |  |
1 | 3.3,5,12,15,24 | 3.3,5,9,12,15,24 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-03S03M | |
1 | 3.3 | 3.3 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-05S03M | |
1 | 5 | 3.3 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-12S03M | |
1 | 12 | 3.3 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-15S03M | |
1 | 15 | 3.3 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-24S03M | |
1 | 24 | 3.3 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-03S05M | |
1 | 3.3 | 5 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-05S05M | |
1 | 5 | 5 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-12S05M | |
1 | 12 | 5 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-15S05M | |
1 | 15 | 5 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-24S05M | |
1 | 24 | 5 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-03S09M | |
1 | 3.3 | 9 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-05S09M | |
1 | 5 | 9 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-12S09M | |
1 | 12 | 9 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-15S09M | |
1 | 15 | 9 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-24S09M | |
1 | 24 | 9 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-03S12M | |
1 | 3.3 | 12 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-05S12M | |
1 | 5 | 12 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-12S12M | |
1 | 12 | 12 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-15S12M | |
1 | 15 | 12 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-24S12M | |
1 | 24 | 12 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-03S15M | |
1 | 3.3 | 15 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-05S15M | |
1 | 5 | 15 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-12S15M | |
1 | 12 | 15 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-15S15M | |
1 | 15 | 15 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-24S15M | |
1 | 24 | 15 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-03S24M | |
1 | 3.3 | 24 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-05S24M | |
1 | 5 | 24 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-12S24M | |
1 | 12 | 24 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-15S24M | |
1 | 15 | 24 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |
| DF1-24S24M | |
1 | 24 | 24 | DIP7 | 3000VDC | 12.70 * 10.10 * 7.00 | |

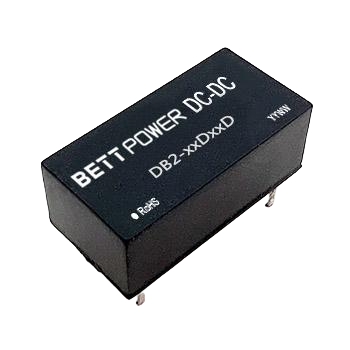

| DB2-xxDxxD |  |
2 | 3.3,5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03D03D | |
2 | 3.3 | ±3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03D05D | |
2 | 3.3 | ±5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03D09D | |
2 | 3.3 | ±9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03D12D | |
2 | 3.3 | ±12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03D15D | |
2 | 3.3 | ±15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03D24D | |
2 | 3.3 | ±24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05D03D | |
2 | 5 | ±3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05D05D | |
2 | 5 | ±5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05D09D | |
2 | 5 | ±9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05D12D | |
2 | 5 | ±12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05D15D | |
2 | 5 | ±15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05D24D | |
2 | 5 | ±24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12D03D | |
2 | 12 | ±3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12D05D | |
2 | 12 | ±5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12D09D | |
2 | 12 | ±9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12D12D | |
2 | 12 | ±12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12D15D | |
2 | 12 | ±15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12D24D | |
2 | 12 | ±24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15D03D | |
2 | 15 | ±3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15D05D | |
2 | 15 | ±5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15D09D | |
2 | 15 | ±9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15D12D | |
2 | 15 | ±12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15D15D | |
2 | 15 | ±15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15D24D | |
2 | 15 | ±24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24D03D | |
2 | 24 | ±3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24D05D | |
2 | 24 | ±5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24D09D | |
2 | 24 | ±9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24D12D | |
2 | 24 | ±12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24D15D | |
2 | 24 | ±15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24D24D | |
2 | 24 | ±24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |

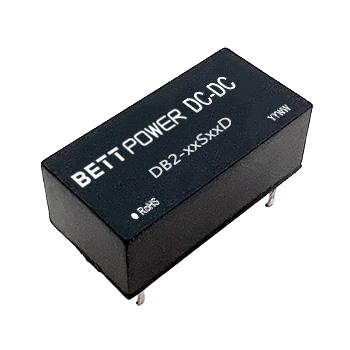

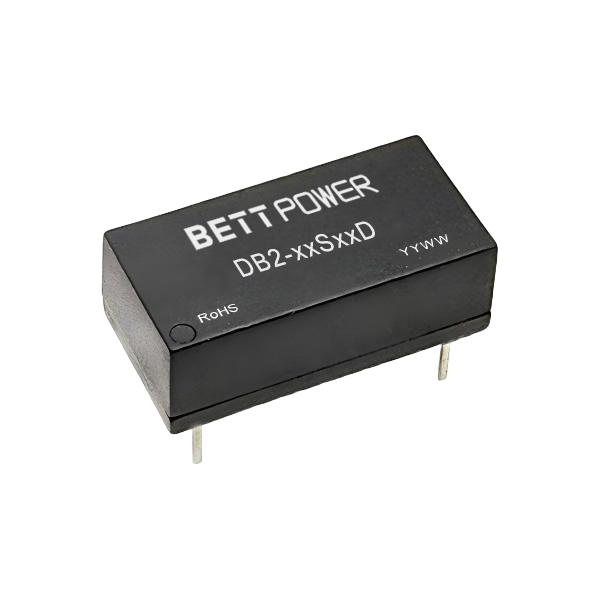

| DB2-xxSxxD |  |
2 | 3.3,5,12,15,24 | 3.3,5,9,12,15,24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03S03D | |
2 | 3.3 | 3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05S03D | |
2 | 5 | 3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12S03D | |
2 | 12 | 3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15S03D | |
2 | 15 | 3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24S03D | |
2 | 24 | 3.3 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03S05D | |
2 | 3.3 | 5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05S05D | |
2 | 5 | 5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12S05D | |
2 | 12 | 5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15S05D | |
2 | 15 | 5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24S05D | |
2 | 24 | 5 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03S09D | |
2 | 3.3 | 9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05S09D | |
2 | 5 | 9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12S09D | |
2 | 12 | 9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15S09D | |
2 | 15 | 9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24S09D | |
2 | 24 | 9 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03S12D | |
2 | 3.3 | 12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05S12D | |
2 | 5 | 12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12S12D | |
2 | 12 | 12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15S12D | |
2 | 15 | 12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24S12D | |
2 | 24 | 12 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03S15D | |
2 | 3.3 | 15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05S15D | |
2 | 5 | 15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12S15D | |
2 | 12 | 15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15S15D | |
2 | 15 | 15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24S15D | |
2 | 24 | 15 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-03S24D | |
2 | 3.3 | 24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-05S24D | |
2 | 5 | 24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-12S24D | |
2 | 12 | 24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-15S24D | |
2 | 15 | 24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DB2-24S24D | |
2 | 24 | 24 | DIP14 | 1500VDC | 19.50 * 9.80 * 7.00 | |
| DF2-xxDxxD |  |
2 | 5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03D03D | |
2 | 3.3 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03D05D | |
2 | 3.3 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03D09D | |
2 | 3.3 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03D12D | |
2 | 3.3 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03D15D | |
2 | 3.3 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03D24D | |
2 | 3.3 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05D03D | |
2 | 5 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05D05D | |
2 | 5 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05D09D | |
2 | 5 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05D12D | |
2 | 5 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05D15D | |
2 | 5 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05D24D | |
2 | 5 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12D03D | |
2 | 12 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12D05D | |
2 | 12 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12D09D | |
2 | 12 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12D12D | |
2 | 12 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12D15D | |
2 | 12 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12D24D | |
2 | 12 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15D03D | |
2 | 15 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15D05D | |
2 | 15 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15D09D | |
2 | 15 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15D12D | |
2 | 15 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15D15D | |
2 | 15 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15D24D | |
2 | 15 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24D03D | |
2 | 24 | ±3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24D05D | |
2 | 24 | ±5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24D09D | |
2 | 24 | ±9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24D12D | |
2 | 24 | ±12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24D15D | |
2 | 24 | ±15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24D24D | |
2 | 24 | ±24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-xxSxxD |  |
2 | 3.3,5,12,15,24 | 3.3,5,9,12,15,24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03S03D | |
2 | 3.3 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05S03D | |
2 | 5 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12S03D | |
2 | 12 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15S03D | |
2 | 15 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24S03D | |
2 | 24 | 3.3 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03S05D | |
2 | 3.3 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05S05D | |
2 | 5 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12S05D | |
2 | 12 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15S05D | |
2 | 15 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24S05D | |
2 | 24 | 5 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03S09D | |
2 | 3.3 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05S09D | |
2 | 5 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12S09D | |
2 | 12 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15S09D | |
2 | 15 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24S09D | |
2 | 24 | 9 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03S12D | |
2 | 3.3 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05S12D | |
2 | 5 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12S12D | |
2 | 12 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15S12D | |
2 | 15 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24S12D | |
2 | 24 | 12 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03S15D | |
2 | 3.3 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05S15D | |
2 | 5 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12S15D | |
2 | 12 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15S15D | |
2 | 15 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24S15D | |
2 | 24 | 15 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-03S24D | |
2 | 3.3 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-05S24D | |
2 | 5 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-12S24D | |
2 | 12 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-15S24D | |
2 | 15 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 | |
| DF2-24S24D | |
2 | 24 | 24 | DIP14 | 3000VDC | 19.50 * 9.80 * 7.00 |
* For reference only. The detailed info please refer to the datasheet.
Tel：020-32166196
Email：info@bettpower.com
Address：Building A1, No.1 Doutang Road, Huangpu District, Guangzhou City, Guangdong Province
- Product
- AC/DC Power Module
- DC/DC Power Module
- Support
- Application
- Sample Request
WeChat
Sample
Tel
Email
TOP
