FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|---|

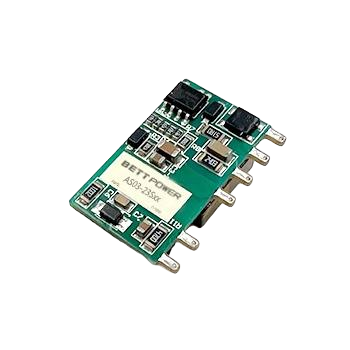

| AS03-23Sxx |  |
3 | 85～305 | 100～430 | 3.3,5,9,12,15,18,24 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS03-23S03 | |
1.98 | 85～305 | 100～430 | 3.3 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS03-23S05 | |
3 | 85～305 | 100～430 | 5 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS03-23S09 | |
3 | 85～305 | 100～430 | 9 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS03-23S12 | |
3 | 85～305 | 100～430 | 12 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS03-23S15 | |
3 | 85～305 | 100～430 | 15 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS03-23S18 | |
3 | 85～305 | 100～430 | 18 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS03-23S24 | |
3 | 85～305 | 100～430 | 24 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |

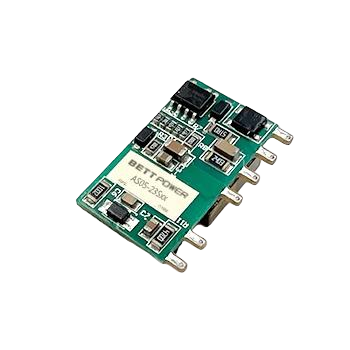

| AS05-23Sxx |  |
5 | 85～305 | 100～430 | 3.3,5,9,12,15,18,24 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS05-23S03 | |
5 | 85～305 | 100～430 | 3.3 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS05-23S05 | |
5 | 85～305 | 100～430 | 5 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS05-23S09 | |
5 | 85～305 | 100～430 | 9 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS05-23S12 | |
5 | 85～305 | 100～430 | 12 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS05-23S15 | |
5 | 85～305 | 100～430 | 15 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS05-23S18 | |
5 | 85～305 | 100～430 | 18 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |
| AS05-23S24 | |
5 | 85～305 | 100～430 | 24 | SIP | 4000VAC | 26.40 * 11.00 * 17.60 | |

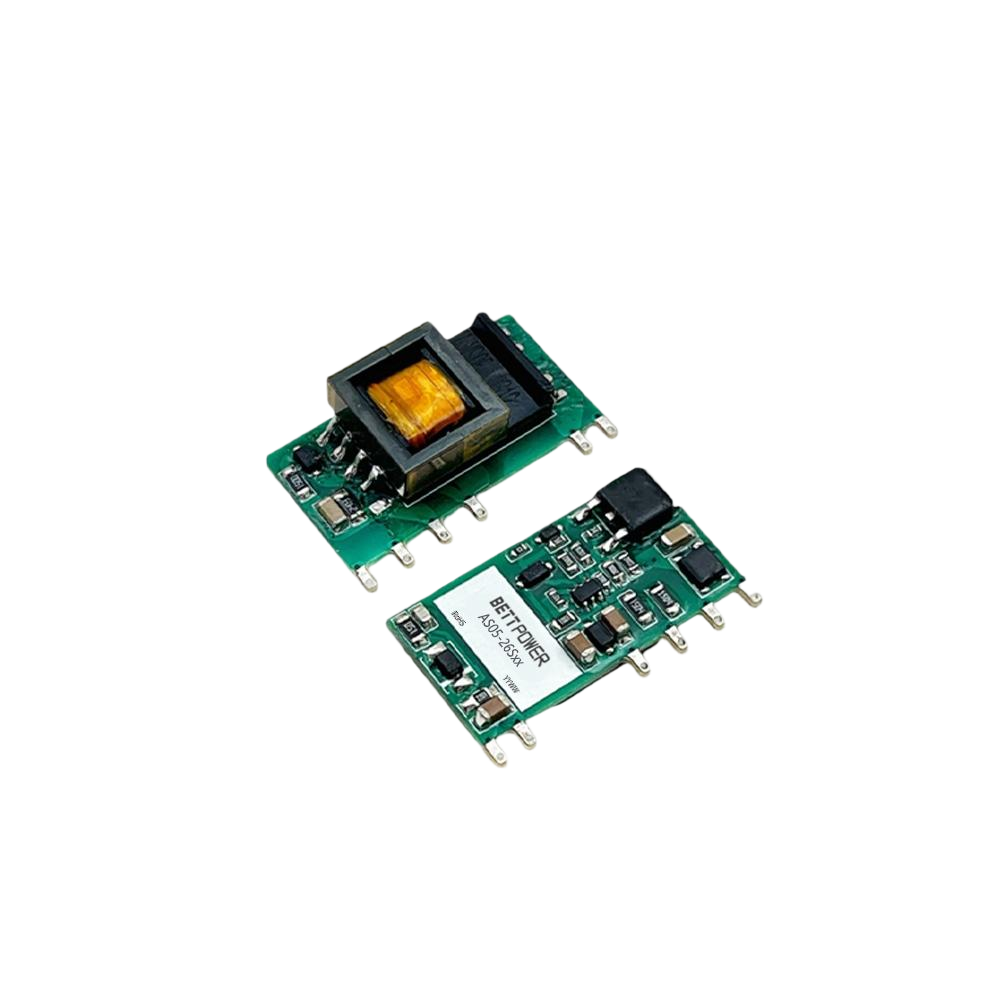

| AS05-26Sxx |  |
5 | 85～528 | 110～745 | 3.3,5,9,12,15,24 | SIP | 4000VAC | 33.50 * 13.00 * 17.20 | |
| AS05-26S03 | |
3.3 | 85～528 | 110～745 | 3.3 | SIP | 4000VAC | 33.50 * 13.00 * 17.20 | |
| AS05-26S05 | |
5 | 85～528 | 110～745 | 5 | SIP | 4000VAC | 33.50 * 13.00 * 17.20 | |
| AS05-26S09 | |
5 | 85～528 | 110～745 | 9 | SIP | 4000VAC | 33.50 * 13.00 * 17.20 | |
| AS05-26S12 | |
5 | 85～528 | 110～745 | 12 | SIP | 4000VAC | 33.50 * 13.00 * 17.20 | |
| AS05-26S15 | |
5 | 85～528 | 110～745 | 15 | SIP | 4000VAC | 33.50 * 13.00 * 17.20 | |
| AS05-26S24 | |
5 | 85～528 | 110～745 | 24 | SIP | 4000VAC | 33.50 * 13.00 * 17.20 | |

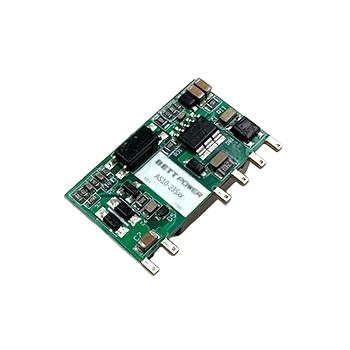

| AS10-23Sxx |  |
10 | 85～305 | 100～430 | 3.3,5,9,12,15,24 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS10-23S03 | |
6.6 | 85～305 | 100～430 | 3.3 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS10-23S05 | |
10 | 85～305 | 100～430 | 5 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS10-23S09 | |
10 | 85～305 | 100～430 | 9 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS10-23S12 | |
10 | 85～305 | 100～430 | 12 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS10-23S15 | |
10 | 85～305 | 100～430 | 15 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS10-23S24 | |
10 | 85～305 | 100～430 | 24 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |

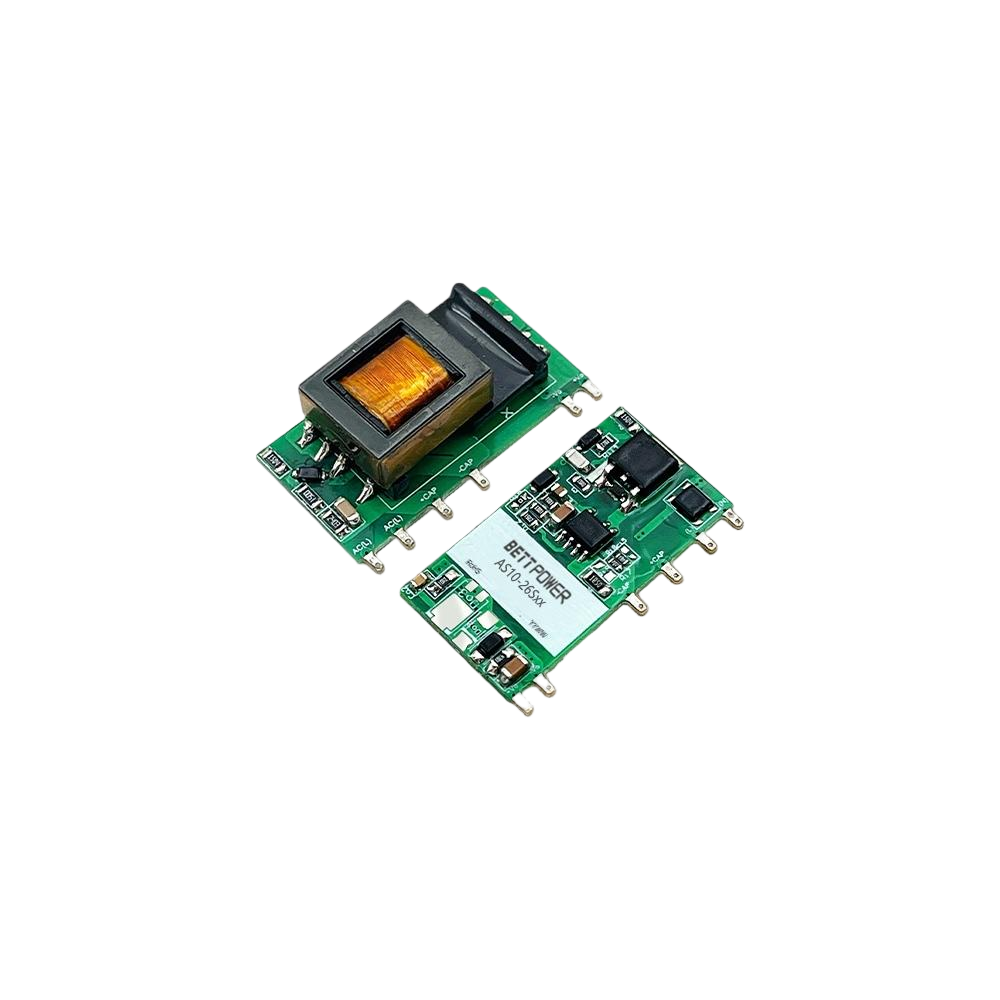

| AS10-26Sxx |  |
10 | 85～528 | 110～745 | 5,9,12,15,24 | SIP | 4000VAC | 38.00 * 20.00 * 15.25 | |
| AS10-26S05 | |
10 | 85～528 | 110～745 | 5 | SIP | 4000VAC | 38.00 * 20.00 * 15.25 | |
| AS10-26S09 | |
10 | 85～528 | 110～745 | 9 | SIP | 4000VAC | 38.00 * 20.00 * 15.25 | |
| AS10-26S12 | |
10 | 85～528 | 110～745 | 12 | SIP | 4000VAC | 38.00 * 20.00 * 15.25 | |
| AS10-26S15 | |
10 | 85～528 | 110～745 | 15 | SIP | 4000VAC | 38.00 * 20.00 * 15.25 | |
| AS10-26S24 | |
10 | 85～528 | 110～745 | 24 | SIP | 4000VAC | 38.00 * 20.00 * 15.25 | |

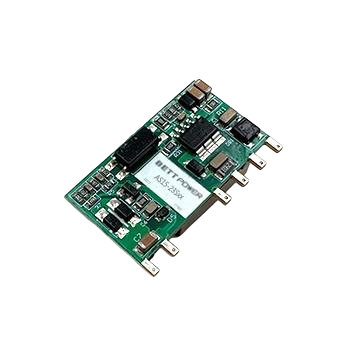

| AS15-23Sxx |  |
15 | 85～305 | 100～430 | 3.3,5,9,12,15,24 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS15-23S03 | |
9.9 | 85～305 | 100～430 | 3.3 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS15-23S05 | |
14 | 85～305 | 100～430 | 5 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS15-23S09 | |
15 | 85～305 | 100～430 | 9 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS15-23S12 | |
15 | 85～305 | 100～430 | 12 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS15-23S15 | |
15 | 85～305 | 100～430 | 15 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 | |
| AS15-23S24 | |
15 | 85～305 | 100～430 | 24 | SIP | 4000VAC | 32.00 * 14.50 * 20.00 |
* For reference only. The detailed info please refer to the datasheet.
