FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|

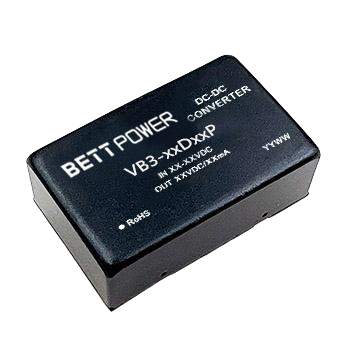

| VB3-xxDxxP |  |
3 | 9～36 | ±5,±12,±15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24D05P | |
3 | 9～36 | ±5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24D12P | |
3 | 9～36 | ±12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24D15P | |
3 | 9～36 | ±15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48D05P | |
3 | 9～36 | ±5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48D12P | |
3 | 9～36 | ±12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48D15P | |
3 | 9～36 | ±15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-xxSxxP |  |
3 | 9～75 | 3.3,5,9,12,15,24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24S03P | |
3 | 9～36 | 3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48S03P | |
3 | 18～75 | 3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24S05P | |
3 | 9～36 | 5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48S05P | |
3 | 18～75 | 5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24S09P | |
3 | 9～36 | 9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48S09P | |
3 | 18～75 | 9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24S12P | |
3 | 9～36 | 12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48S12P | |
3 | 18～75 | 12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24S15P | |
3 | 9～36 | 15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48S15P | |
3 | 9～36 | 15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-24S24P | |
3 | 9～36 | 24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB3-48S24P | |
3 | 9～36 | 24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |

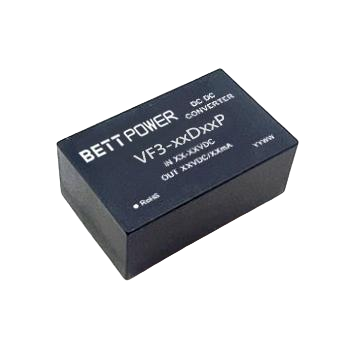

| VF3-xxDxxP |  |
3 | 4.5～75 | ±5,±12,±15 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12D05P | |
3 | 4.5～18 | ±5 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12D12P | |
3 | 4.5～18 | ±12 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12D15P | |
3 | 4.5～18 | ±15 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24D05P | |
3 | 9～36 | ±5 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24D12P | |
3 | 9～36 | ±12 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24D15P | |
3 | 9～36 | ±15 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48D05P | |
3 | 18～75 | ±5 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48D12P | |
3 | 18～75 | ±12 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48D15P | |
3 | 18～75 | ±15 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |

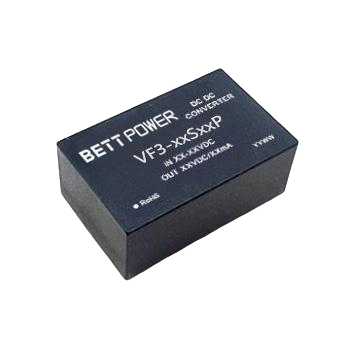

| VF3-xxSxxP |  |
3 | 4.5～75 | 3.3,5,9,12,15,24 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12S03P | |
3 | 4.5～18 | 3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24S03P | |
3 | 9～36 | 3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48S03P | |
3 | 18～75 | 3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12S05P | |
3 | 4.5～18 | 5 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24S05P | |
3 | 9～36 | 5 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48S05P | |
3 | 18～75 | 5 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12S09P | |
3 | 4.5～18 | 9 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24S09P | |
3 | 9～36 | 9 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48S09P | |
3 | 18～75 | 9 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12S12P | |
3 | 4.5～18 | 12 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24S12P | |
3 | 9～36 | 12 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48S12P | |
3 | 18～75 | 12 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12S15P | |
3 | 4.5～18 | 15 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24S15P | |
3 | 9～36 | 15 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48S15P | |
3 | 18～75 | 15 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-12S24P | |
3 | 4.5～18 | 24 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-24S24P | |
3 | 9～36 | 24 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VF3-48S24P | |
3 | 18～75 | 24 | DIP24 | 3000VDC | 32.00 * 20.00 * 11.10 | |
| VB6-xxDxxP |  |
6 | 4.5～75 | ±3.3,±5,±6,±9,±12,±15,±24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12D03P | |
6 | 4.5～18 | ±3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12D05P | |
6 | 4.5～18 | ±5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12D06P | |
6 | 4.5～18 | ±6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12D09P | |
6 | 4.5～18 | ±9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12D12P | |
6 | 4.5～18 | ±12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12D15P | |
6 | 4.5～18 | ±15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12D24P | |
6 | 4.5～18 | ±24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24D03P | |
6 | 9～36 | ±3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24D05P | |
6 | 9～36 | ±5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24D06P | |
6 | 9～36 | ±6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24D09P | |
6 | 9～36 | ±9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24D12P | |
6 | 9～36 | ±12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24D15P | |
6 | 9～36 | ±15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24D24P | |
6 | 9～36 | ±24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48D03P | |
6 | 18～75 | ±3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48D05P | |
6 | 18～75 | ±5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48D06P | |
6 | 18～75 | ±6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48D09P | |
6 | 18～75 | ±9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48D12P | |
6 | 18～75 | ±12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48D15P | |
6 | 18～75 | ±15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48D24P | |
6 | 18～75 | ±24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |

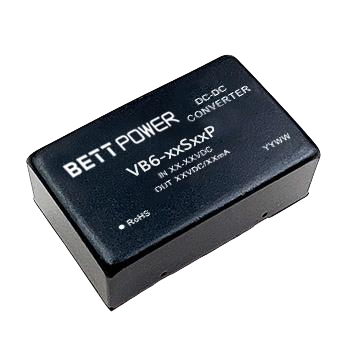

| VB6-xxSxxP |  |
6 | 4.5～75 | 3.3,5,6,9,12,15,24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12S03P | |
6 | 4.5～18 | 3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24S03P | |
6 | 9～36 | 3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48S03P | |
6 | 18～75 | 3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12S05P | |
6 | 4.5～18 | 5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24S05P | |
6 | 9～36 | 5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48S05P | |
6 | 18～75 | 5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12S06P | |
6 | 4.5～18 | 6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24S06P | |
6 | 9～36 | 6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48S06P | |
6 | 18～75 | 6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12S09P | |
6 | 4.5～18 | 9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24S09P | |
6 | 9～36 | 9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48S09P | |
6 | 18～75 | 9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12S12P | |
6 | 4.5～18 | 12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24S12P | |
6 | 9～36 | 12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48S12P | |
6 | 18～75 | 12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12S15P | |
6 | 4.5～18 | 15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24S15P | |
6 | 9～36 | 15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48S15P | |
6 | 18～75 | 15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-12S24P | |
6 | 4.5～18 | 24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-24S24P | |
6 | 9～36 | 24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB6-48S24P | |
6 | 18～75 | 24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VF6-xxDxxP |  |
6 | 4.5～75 | ±3.3,±5,±6,±9,±12,±15,±24 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12D03P | |
6 | 4.5～18 | ±3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12D05P | |
6 | 4.5～18 | ±5 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12D06P | |
6 | 4.5～18 | ±6 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12D09P | |
6 | 4.5～18 | ±9 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12D12P | |
6 | 4.5～18 | ±12 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12D15P | |
6 | 4.5～18 | ±15 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12D24P | |
6 | 4.5～18 | ±24 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24D03P | |
6 | 9～36 | ±3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24D05P | |
6 | 9～36 | ±5 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24D06P | |
6 | 9～36 | ±6 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24D09P | |
6 | 9～36 | ±9 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24D12P | |
6 | 9～36 | ±12 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24D15P | |
6 | 9～36 | ±15 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24D24P | |
6 | 9～36 | ±24 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48D03P | |
6 | 18～75 | ±3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48D05P | |
6 | 18～75 | ±5 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48D06P | |
6 | 18～75 | ±6 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48D09P | |
6 | 18～75 | ±9 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48D12P | |
6 | 18～75 | ±12 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48D15P | |
6 | 18～75 | ±15 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48D24P | |
6 | 18～75 | ±24 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |

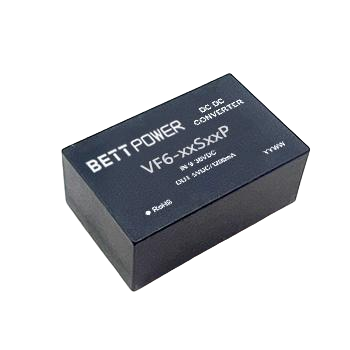

| VF6-xxSxxP |  |
6 | 4.5～75 | 3.3,5,6,9,12,15,24 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12S03P | |
6 | 4.5～18 | 3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24S03P | |
6 | 9～36 | 3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48S03P | |
6 | 18～75 | 3.3 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12S05P | |
6 | 4.5～18 | 5 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24S05P | |
6 | 9～36 | 5 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48S05P | |
6 | 18～75 | 5 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12S06P | |
6 | 4.5～18 | 6 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24S06P | |
6 | 9～36 | 6 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48S06P | |
6 | 18～75 | 6 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12S09P | |
6 | 4.5～18 | 9 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24S09P | |
6 | 9～36 | 9 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48S09P | |
6 | 18～75 | 9 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12S12P | |
6 | 4.5～18 | 12 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24S12P | |
6 | 9～36 | 12 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48S12P | |
6 | 18～75 | 12 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12S15P | |
6 | 4.5～18 | 15 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24S15P | |
6 | 9～36 | 15 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48S15P | |
6 | 18～75 | 15 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-12S24P | |
6 | 4.5～18 | 24 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-24S24P | |
6 | 9～36 | 24 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VF6-48S24P | |
6 | 18～75 | 24 | DIP24 | 3000VDC | 32.00 * 20.00 * 10.20 | |
| VH6-xxSxxP |  |
6 | 9～75 | 5,6,9,12,15,18,24 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-24S05P | |
6 | 9～36 | 5 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-48S05P | |
6 | 18～75 | 5 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-24S06P | |
6 | 9～36 | 6 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-24S09P | |
6 | 9～36 | 9 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-48S09P | |
6 | 18～75 | 9 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-24S12P | |
6 | 9～36 | 12 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-48S12P | |
6 | 18～75 | 12 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-24S15P | |
6 | 9～36 | 15 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-48S15P | |
6 | 18～75 | 15 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-24S18P | |
6 | 9～36 | 18 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-24S24P | |
6 | 9～36 | 24 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |
| VH6-48S24P | |
6 | 18～75 | 24 | DIP24 | 6000VDC | 31.60 * 20.30 * 10.20 | |

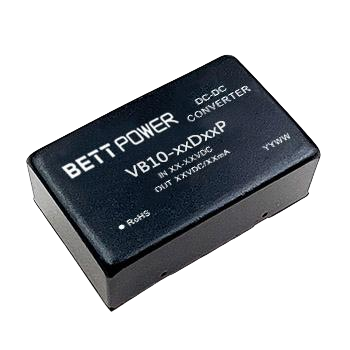

| VB10-xxDxxP |  |
10 | 9～75 | ±3.3,±5,±6,±9,±12,±15,±24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24D03P | |
10 | 9～36 | ±3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24D05P | |
10 | 9～36 | ±5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24D06P | |
10 | 9～36 | ±6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24D09P | |
10 | 9～36 | ±9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24D12P | |
10 | 9～36 | ±12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24D15P | |
10 | 9～36 | ±15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24D24P | |
10 | 9～36 | ±24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48D03P | |
10 | 18～75 | ±3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48D05P | |
10 | 18～75 | ±5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48D06P | |
10 | 18～75 | ±6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48D09P | |
10 | 18～75 | ±9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48D12P | |
10 | 18～75 | ±12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48D15P | |
10 | 18～75 | ±15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48D24P | |
10 | 18～75 | ±24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-xxSxxP |  |
10 | 4.5～75 | 3.3,5,6,9,12,15,24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-12S03P | |
10 | 4.5～18 | 3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24S03P | |
10 | 9～36 | 3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48S03P | |
10 | 18～75 | 3.3 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-12S05P | |
10 | 4.5～18 | 5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24S05P | |
10 | 9～36 | 5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48S05P | |
10 | 18～75 | 5 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-12S06P | |
10 | 4.5～18 | 6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24S06P | |
10 | 9～36 | 6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48S06P | |
10 | 18～75 | 6 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-12S09P | |
10 | 4.5～18 | 9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24S09P | |
10 | 9～36 | 9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48S09P | |
10 | 18～75 | 9 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-12S12P | |
10 | 4.5～18 | 12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24S12P | |
10 | 9～36 | 12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48S12P | |
10 | 18～75 | 12 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-12S15P | |
10 | 4.5～18 | 15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24S15P | |
10 | 9～36 | 15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48S15P | |
10 | 18～75 | 15 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-12S24P | |
10 | 4.5～18 | 24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-24S24P | |
10 | 9～36 | 24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 | |
| VB10-48S24P | |
10 | 18～75 | 24 | DIP24 | 1500VDC | 32.00 * 20.00 * 11.10 |
* For reference only. The detailed info please refer to the datasheet.
Tel：020-32166196
Email：info@bettpower.com
Address：Building A1, No.1 Doutang Road, Huangpu District, Guangzhou City, Guangdong Province
- Product
- AC/DC Power Module
- DC/DC Power Module
- Support
- Application
- Sample Request
WeChat
Sample
Tel
Email
TOP
