FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|
| VB1-xxDxxS |  |
1 | 4.5～75 | ±5,±12,±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12D05S | |
1 | 4.5～18 | ±5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12D12S | |
1 | 4.5～18 | ±12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12D15S | |
1 | 4.5～18 | ±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-24D05S | |
1 | 9～36 | ±5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-24D12S | |
1 | 9～36 | ±12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-24D15S | |
1 | 9～36 | ±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-48D05S | |
1 | 18～75 | ±5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-48D12S | |
1 | 18～75 | ±12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-48D15S | |
1 | 18～75 | ±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-xxSxxS |  |
1 | 4.5～75 | 3.3,5,9,12,15,24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12S03S | |
1 | 4.5～18 | 3.3 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| VB1-24S03S | |
1 | 9～36 | 3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-48S03S | |
1 | 18～75 | 3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12S05S | |
1 | 4.5～18 | 5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-24S05S | |
1 | 9～36 | 5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-48S05S | |
1 | 18～75 | 5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12S09S | |
1 | 4.5～18 | 9 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12S12S | |
1 | 4.5～18 | 12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-24S12S | |
1 | 9～36 | 12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-48S12S | |
1 | 18～75 | 12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12S15S | |
1 | 4.5～18 | 15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-24S15S | |
1 | 9～36 | 15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-48S15S | |
1 | 18～75 | 15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-12S24S | |
1 | 4.5～18 | 24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB1-24S24S | |
1 | 9～36 | 24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-xxDxxS |  |
3 | 4.5～75 | ±5,±12,±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-12D05S | |
3 | 4.5～18 | ±5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-12D12S | |
3 | 4.5～18 | ±12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-12D15S | |
3 | 4.5～18 | ±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24D05S | |
3 | 9～36 | ±5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24D12S | |
3 | 9～36 | ±12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24D15S | |
3 | 9～36 | ±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-48D05S | |
3 | 18～75 | ±5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-48D12S | |
3 | 18～75 | ±12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-48D15S | |
3 | 18～75 | ±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-xxSxxS |  |
3 | 4.5～75 | 3.3,5,9,12,15,24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-12S03S | |
3 | 4.5～18 | 3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24S03S | |
3 | 9～36 | 3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-48S03S | |
3 | 18～75 | 3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-12S05S | |
3 | 4.5～18 | 5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24S05S | |
3 | 9～36 | 5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-48S05S | |
3 | 18～75 | 5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24S09S | |
3 | 9～36 | 9 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-12S12S | |
3 | 4.5～18 | 12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24S12S | |
3 | 9～36 | 12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-48S12S | |
3 | 18～75 | 12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-12S15S | |
3 | 4.5～18 | 15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24S15S | |
3 | 9～36 | 15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-48S15S | |
3 | 18～75 | 15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-12S24S | |
3 | 4.5～18 | 24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-24S24S | |
3 | 9～36 | 24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB3-48S24S | |
3 | 18～75 | 24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |

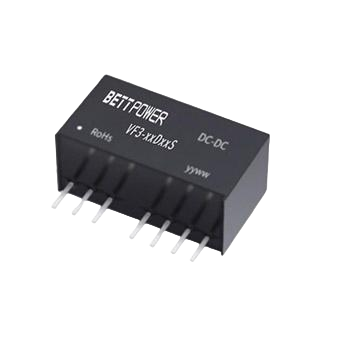

| VF3-xxDxxS |  |
3 | 4.5～75 | ±5,±12,±15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-12D05S | |
3 | 4.5～18 | ±5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-12D12S | |
3 | 4.5～18 | ±12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-12D15S | |
3 | 4.5～18 | ±15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-24D05S | |
3 | 9～36 | ±5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-24D12S | |
3 | 9～36 | ±12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-24D15S | |
3 | 9～36 | ±15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-48D05S | |
3 | 18～75 | ±5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-48D12S | |
3 | 18～75 | ±12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-48D15S | |
3 | 18～75 | ±15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-xxSxxS |  |
3 | 4.5～75 | 3.3,5,12,15,24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-12S03S | |
3 | 4.5～18 | 3.3 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-24S03S | |
3 | 9～36 | 3.3 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-48S03S | |
3 | 18～75 | 3.3 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-12S05S | |
3 | 4.5～18 | 5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-24S05S | |
3 | 9～36 | 5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-48S05S | |
3 | 18～75 | 5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-12S12S | |
3 | 4.5～18 | 12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-24S12S | |
3 | 9～36 | 12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-48S12S | |
3 | 18～75 | 12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-12S15S | |
3 | 4.5～18 | 15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-24S15S | |
3 | 9～36 | 15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-48S15S | |
3 | 18～75 | 15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-12S24S | |
3 | 4.5～18 | 24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF3-24S24S | |
3 | 9～36 | 24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| WF3-xxDxxS |  |
3 | 4.5～75 | ±3.3,±5,±6,±9,±12,±15,±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05D03S | |
3 | 4.5～9 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05D05S | |
3 | 4.5～9 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05D09S | |
3 | 4.5～9 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05D12S | |
3 | 4.5～9 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05D15S | |
3 | 4.5～9 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05D24S | |
3 | 4.5～9 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12D03S | |
3 | 9～18 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12D05S | |
3 | 9～18 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12D09S | |
3 | 9～18 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12D12S | |
3 | 9～18 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12D15S | |
3 | 9～18 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12D24S | |
3 | 9～18 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24D03S | |
3 | 18～36 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24D05S | |
3 | 18～36 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24D09S | |
3 | 18～36 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24D12S | |
3 | 18～36 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24D15S | |
3 | 18～36 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24D24S | |
3 | 18～36 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48D03S | |
3 | 36～75 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48D05S | |
3 | 36～75 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48D09S | |
3 | 36～75 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48D12S | |
3 | 36～75 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48D15S | |
3 | 36～75 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48D24S | |
3 | 36～75 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |

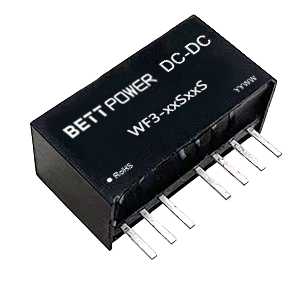

| WF3-xxSxxS |  |
3 | 4.5～75 | 3.3,5,6,9,12,15,18,24,28 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S03S | |
3 | 4.5～9 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S03S | |
3 | 9～18 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S03S | |
3 | 18～36 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S03S | |
3 | 36～75 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S05S | |
3 | 4.5～9 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S05S | |
3 | 9～18 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S05S | |
3 | 18～36 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S05S | |
3 | 36～75 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S06S | |
3 | 4.5～9 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S06S | |
3 | 9～18 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S06S | |
3 | 18～36 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S06S | |
3 | 36～75 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S09S | |
3 | 4.5～9 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S09S | |
3 | 9～18 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S09S | |
3 | 18～36 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S09S | |
3 | 36～75 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S12S | |
3 | 4.5～9 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S12S | |
3 | 9～18 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S12S | |
3 | 18～36 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S12S | |
3 | 36～75 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S15S | |
3 | 4.5～9 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S15S | |
3 | 9～18 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S15S | |
3 | 18～36 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S15S | |
3 | 36～75 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S18S | |
3 | 4.5～9 | 18 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S18S | |
3 | 9～18 | 18 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S18S | |
3 | 18～36 | 18 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S18S | |
3 | 36～75 | 18 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S24S | |
3 | 4.5～9 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S24S | |
3 | 9～18 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S24S | |
3 | 18～36 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S24S | |
3 | 36～75 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-05S28S | |
3 | 4.5～9 | 28 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-12S28S | |
3 | 9～18 | 28 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-24S28S | |
3 | 18～36 | 28 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF3-48S28S | |
3 | 36～75 | 28 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| VB6-xxDxxS |  |
6 | 4.5～75 | ±3.3,±5,±9,±12,±15,±24 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12D03S | |
6 | 4.5～18 | ±3.3 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12D05S | |
6 | 4.5～18 | ±5 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12D09S | |
6 | 4.5～18 | ±9 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12D12S | |
6 | 4.5～18 | ±12 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12D15S | |
6 | 4.5～18 | ±15 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12D24S | |
6 | 4.5～18 | ±24 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24D03S | |
6 | 9～36 | ±3.3 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24D05S | |
6 | 9～36 | ±5 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24D09S | |
6 | 9～36 | ±9 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24D12S | |
6 | 9～36 | ±12 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24D15S | |
6 | 9～36 | ±15 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24D24S | |
6 | 9～36 | ±24 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48D03S | |
6 | 18～75 | ±3.3 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48D05S | |
6 | 18～75 | ±5 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48D09S | |
6 | 18～75 | ±9 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48D12S | |
6 | 18～75 | ±12 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48D15S | |
6 | 18～75 | ±15 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48D24S | |
6 | 18～75 | ±24 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-xxSxxS |  |
6 | 4.5～75 | 3.3,5,6,9,12,15,24 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12S03S | |
6 | 4.5～18 | 3.3 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24S03S | |
6 | 9～36 | 3.3 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48S03S | |
6 | 18～75 | 3.3 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12S05S | |
6 | 4.5～18 | 5 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24S05S | |
6 | 9～36 | 5 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48S05S | |
6 | 18～75 | 5 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24S06S | |
6 | 9～36 | 6 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24S09S | |
6 | 9～36 | 9 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48S09S | |
6 | 18～75 | 9 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12S12S | |
6 | 4.5～18 | 12 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24S12S | |
6 | 9～36 | 12 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48S12S | |
6 | 18～75 | 12 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-12S15S | |
6 | 4.5～18 | 15 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24S15S | |
6 | 9～36 | 15 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48S15S | |
6 | 18～75 | 15 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-24S24S | |
6 | 9～36 | 24 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48S24S | |
6 | 18～75 | 24 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VB6-48S28S | |
6 | 18～75 | 28 | SIP8 | 1600VDC | 22.00 * 12.00 * 9.50 | |
| VF6-xxDxxS |  |
6 | 9～36 | ±5,±9,±12,±15,±24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24D05S | |
6 | 9～36 | ±5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24D09S | |
6 | 9～36 | ±9 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24D12S | |
6 | 9～36 | ±12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24D15S | |
6 | 9～36 | ±15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24D24S | |
6 | 9～36 | ±24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |

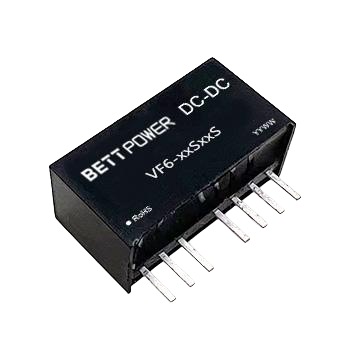

| VF6-xxSxxS |  |
6 | 9～75 | 3.3,5,6,9,12,15,24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24S03S | |
6 | 9～36 | 3.3 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24S05S | |
6 | 9～36 | 5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-48S05S | |
6 | 18～75 | 5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24S06S | |
6 | 9～36 | 6 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24S09S | |
6 | 9～36 | 9 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24S12S | |
6 | 9～36 | 12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-48S12S | |
6 | 18～75 | 12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24S15S | |
6 | 9～36 | 15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-48S15S | |
6 | 18～75 | 15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-24S24S | |
6 | 9～36 | 24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF6-48S24S | |
6 | 18～75 | 24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |

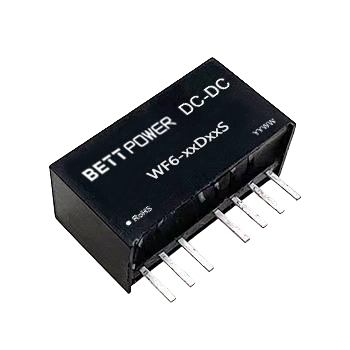

| WF6-xxDxxS |  |
6 | 4.5～75 | ±3.3,±5,±6,±9,±12,±15,±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05D03S | |
6 | 4.5～9 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05D05S | |
6 | 4.5～9 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05D06S | |
6 | 4.5～9 | ±6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05D09S | |
6 | 4.5～9 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05D12S | |
6 | 4.5～9 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05D15S | |
6 | 4.5～9 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05D24S | |
6 | 4.5～9 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12D03S | |
6 | 9～18 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12D05S | |
6 | 9～18 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12D06S | |
6 | 9～18 | ±6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12D09S | |
6 | 9～18 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12D12S | |
6 | 9～18 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12D15S | |
6 | 9～18 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12D24S | |
6 | 9～18 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24D03S | |
6 | 18～36 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24D05S | |
6 | 18～36 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24D06S | |
6 | 18～36 | ±6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24D09S | |
6 | 18～36 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24D12S | |
6 | 18～36 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24D15S | |
6 | 18～36 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24D24S | |
6 | 18～36 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48D03S | |
6 | 36～75 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48D05S | |
6 | 36～75 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48D06S | |
6 | 36～75 | ±6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48D09S | |
6 | 36～75 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48D12S | |
6 | 36～75 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48D15S | |
6 | 36～75 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48D24S | |
6 | 36～75 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-xxSxxS |  |
6 | 4.5～75 | 3.3,5,6,9,12,15,24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05S03S | |
6 | 4.5～9 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12S03S | |
6 | 9～18 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24S03S | |
6 | 18～36 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48S03S | |
6 | 36～75 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05S05S | |
6 | 4.5～9 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12S05S | |
6 | 9～18 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24S05S | |
6 | 18～36 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48S05S | |
6 | 36～75 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05S06S | |
6 | 4.5～9 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12S06S | |
6 | 9～18 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24S06S | |
6 | 18～36 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48S06S | |
6 | 36～75 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05S09S | |
6 | 4.5～9 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12S09S | |
6 | 9～18 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24S09S | |
6 | 18～36 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48S09S | |
6 | 36～75 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05S12S | |
6 | 4.5～9 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12S12S | |
6 | 9～18 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24S12S | |
6 | 18～36 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48S12S | |
6 | 36～75 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05S15S | |
6 | 4.5～9 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12S15S | |
6 | 9～18 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24S15S | |
6 | 18～36 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48S15S | |
6 | 36～75 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-05S24S | |
6 | 4.5～9 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-12S24S | |
6 | 9～18 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-24S24S | |
6 | 18～36 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF6-48S24S | |
6 | 36～75 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| VB10-xxDxxS |  |
10 | 9～75 | ±3.3,±5,±6,±9,±12,±15,±24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24D03S | |
10 | 9～36 | ±3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24D05S | |
10 | 9～36 | ±5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24D06S | |
10 | 9～36 | ±6 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24D09S | |
10 | 9～36 | ±9 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24D12S | |
10 | 9～36 | ±12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24D15S | |
10 | 9～36 | ±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24D24D | |
10 | 9～36 | ±24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48D03S | |
10 | 18～75 | ±3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48D05S | |
10 | 18～75 | ±5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48D06S | |
10 | 18～75 | ±6 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48D09S | |
10 | 18～75 | ±9 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48D12S | |
10 | 18～75 | ±12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48D15S | |
10 | 18～75 | ±15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48D24D | |
10 | 18～75 | ±24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-xxSxxS |  |
10 | 9～75 | 3.3,5,6,9,12,15,24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24S03S | |
10 | 9～36 | 3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48S03S | |
10 | 18～75 | 3.3 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24S05S | |
10 | 9～36 | 5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48S05S | |
10 | 18～75 | 5 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24S06S | |
10 | 9～36 | 6 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48S06S | |
10 | 18～75 | 6 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24S09S | |
10 | 9～36 | 9 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48S09S | |
10 | 18～75 | 9 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24S12S | |
10 | 9～36 | 12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48S12S | |
10 | 18～75 | 12 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24S15S | |
10 | 9～36 | 15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48S15S | |
10 | 18～75 | 15 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-24S24S | |
10 | 9～36 | 24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VB10-48S24S | |
10 | 18～75 | 24 | SIP8 | 1500VDC | 22.00 * 12.00 * 9.50 | |
| VF10-xxSxxS |  |
10 | 9～75 | 3.3,5,6,9,12,15,24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-24S03S | |
10 | 9～36 | 3.3 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-48S03S | |
10 | 18～75 | 3.3 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-24S05S | |
10 | 9～36 | 5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-48S05S | |
10 | 18～75 | 5 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-24S06S | |
10 | 9～36 | 6 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-48S06S | |
10 | 18～75 | 6 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-24S09S | |
10 | 9～36 | 9 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-48S09S | |
10 | 18～75 | 9 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-24S12S | |
10 | 9～36 | 12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-48S12S | |
10 | 18～75 | 12 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-24S15S | |
10 | 9～36 | 15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-48S15S | |
10 | 18～75 | 15 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-24S24S | |
10 | 9～36 | 24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| VF10-48S24S | |
10 | 18～75 | 24 | SIP8 | 3000VDC | 22.00 * 12.00 * 9.50 | |
| WF10-xxDxxS |  |
10 | 9～75 | ±3.3,±5,±6,±9,±12,±15,±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12D03S | |
10 | 9～18 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12D05S | |
10 | 9～18 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12D06S | |
10 | 9～18 | ±6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12D09S | |
10 | 9～18 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12D12S | |
10 | 9～18 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12D15S | |
10 | 9～18 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12D24S | |
10 | 9～18 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24D03S | |
10 | 18～36 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24D05S | |
10 | 18～36 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24D06S | |
10 | 18～36 | ±6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24D09S | |
10 | 18～36 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24D12S | |
10 | 18～36 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24D15S | |
10 | 18～36 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24D24S | |
10 | 18～36 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48D03S | |
10 | 36～75 | ±3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48D05S | |
10 | 36～75 | ±5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48D06S | |
10 | 36～75 | ±6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48D09S | |
10 | 36～75 | ±9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48D12S | |
10 | 36～75 | ±12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48D15S | |
10 | 36～75 | ±15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48D24S | |
10 | 36～75 | ±24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-xxSxxS |  |
10 | 9～75 | 3.3,5,6,9,12,15,24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12S03S | |
10 | 9～18 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24S03S | |
10 | 18～36 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48S03S | |
10 | 36～75 | 3.3 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12S05S | |
10 | 9～18 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24S05S | |
10 | 18～36 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48S05S | |
10 | 36～75 | 5 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12S06S | |
10 | 9～18 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24S06S | |
10 | 18～36 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48S06S | |
10 | 36～75 | 6 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12S09S | |
10 | 9～18 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24S09S | |
10 | 18～36 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48S09S | |
10 | 36～75 | 9 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12S12S | |
10 | 9～18 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24S12S | |
10 | 18～36 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48S12S | |
10 | 36～75 | 12 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12S15S | |
10 | 9～18 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24S15S | |
10 | 18～36 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48S15S | |
10 | 36～75 | 15 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-12S24S | |
10 | 9～18 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-24S24S | |
10 | 18～36 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 | |
| WF10-48S24S | |
10 | 36～75 | 24 | SIP8 | 3000VDC | 22.00 * 9.50 * 12.00 |
* For reference only. The detailed info please refer to the datasheet.
Tel：020-32166196
Email：info@bettpower.com
Address：Building A1, No.1 Doutang Road, Huangpu District, Guangzhou City, Guangdong Province
- Product
- AC/DC Power Module
- DC/DC Power Module
- Support
- Application
- Sample Request
WeChat
Sample
Tel
Email
TOP
