FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Output Voltage Positive | Output Voltage Negative | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|---|
| DQ1-xxDxxS |  |
1 | 5,12,15,24 | 9,15,17,18,20 | -3.5,-4,-5-8,-8.7 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-05D1505S | |
1 | 5 | 15 | -5 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-05D1509S | |
1 | 5 | 15 | -8.7 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-05D1803S | |
1 | 5 | 18 | -3.5 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-05D2004S | |
1 | 5 | 20 | -4 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-05D2005S | |
1 | 5 | 20 | -5 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-12D1508S | |
1 | 12 | 15 | -8 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-12D1509S | |
1 | 12 | 15 | -8.7 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-15D1509S | |
1 | 15 | 15 | -8.7 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-15D1709S | |
1 | 15 | 17 | -8.7 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-15D2005S | |
1 | 15 | 20 | -5 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-15S09S | |
1 | 15 | 9 | - | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ1-24D1509S | |
1 | 24 | 15 | -8.7 | SIP7 | 5000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-xxDxxS |  |
2 | 12,15,24 | 15,18,20 | -2.5,-3,-3.5,-4,-5,-8,-8.7 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-12D1503S | |
2 | 12 | 15 | -3.5 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-12D2004S | |
2 | 12 | 20 | -4 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-12D2005S | |
2 | 12 | 20 | -5 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-15D1504S | |
2 | 15 | 15 | -4 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-15D1508S | |
2 | 15 | 15 | -8 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-15D1509S | |
2 | 15 | 15 | -8.7 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-15D152R5S | |
2 | 15 | 15 | -2.5 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-15D1803S | |
2 | 15 | 18 | -3 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-15D2004S | |
2 | 15 | 20 | -4 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-15D2005S | |
2 | 15 | 20 | -5 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |
| DQ2-24D2004S | |
2 | 24 | 20 | -4 | SIP7 | 4000VAC | 19.50 * 9.80 * 12.50 | |

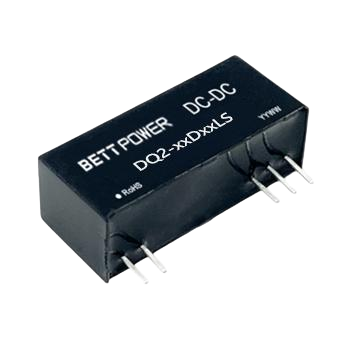

| DQ2-xxDxxLS |  |
2 | 12,15,24 | 15,20 | -4,-5,-8.7,-9 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 | |
| DQ2-12D1504LS | |
2 | 12 | 15 | -4 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 | |
| DQ2-12D1509LS | |
2 | 12 | 15 | -9 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 | |
| DQ2-12D2005LS | |
2 | 12 | 20 | -5 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 | |
| DQ2-15D1504LS | |
2 | 15 | 15 | -4 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 | |
| DQ2-15D1509LS | |
2 | 15 | 15 | -8.7 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 | |
| DQ2-15D2005LS | |
2 | 15 | 20 | -5 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 | |
| DQ2-24D1504LS | |
2 | 24 | 15 | -4 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 | |
| DQ2-24D2005LS | |
2 | 24 | 20 | -5 | SIP10 | 5000VAC | 27.40 * 9.50 * 12.00 |
* For reference only. The detailed info please refer to the datasheet.
