FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|---|
| AD03-23Sxx |  |
3 | 85～305 | 100～430 | 3.3,5,9,12,15,18,24 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD03-23S03 | |
3 | 85～305 | 100～430 | 3.3 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD03-23S05 | |
3 | 85～305 | 100～430 | 5 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD03-23S09 | |
3 | 85～305 | 100～430 | 9 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD03-23S12 | |
3 | 85～305 | 100～430 | 12 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD03-23S15 | |
3 | 85～305 | 100～430 | 15 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD03-23S18 | |
3 | 85～305 | 100～430 | 18 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD03-23S24 | |
3 | 85～305 | 100～430 | 24 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |

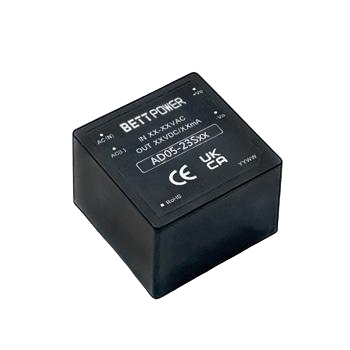

| AD05-23Sxx |  |
5 | 85～305 | 100～430 | 3.3,5,9,12,15,18,24 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD05-23S03 | |
5 | 85～305 | 100～430 | 3.3 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD05-23S05 | |
5 | 85～305 | 100～430 | 5 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD05-23S09 | |
5 | 85～305 | 100～430 | 9 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD05-23S12 | |
5 | 85～305 | 100～430 | 12 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD05-23S15 | |
5 | 85～305 | 100～430 | 15 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD05-23S18 | |
5 | 85～305 | 100～430 | 18 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |
| AD05-23S24 | |
5 | 85～305 | 100～430 | 24 | DIP | 4000VAC | 25.40 * 25.40 * 17.60 | |

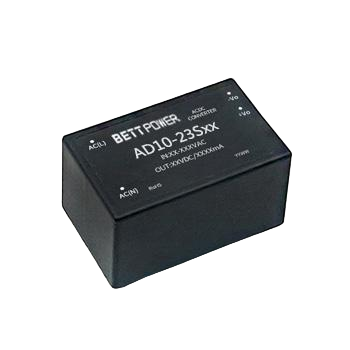

| AD10-23Sxx |  |
10 | 85～305 | 100～430 | 3.3,5,9,12,15,18,24 | DIP | 4000VAC | 40.00 * 25.40 * 21.50 | |
| AD10-23S03 | |
8.6 | 85～305 | 100～430 | 3.3 | DIP | 4000VAC | 40.00 * 25.40 * 21.50 | |
| AD10-23S05 | |
10 | 85～305 | 100～430 | 5 | DIP | 4000VAC | 40.00 * 25.40 * 21.50 | |
| AD10-23S09 | |
10 | 85～305 | 100～430 | 9 | DIP | 4000VAC | 40.00 * 25.40 * 21.50 | |
| AD10-23S12 | |
10 | 85～305 | 100～430 | 12 | DIP | 4000VAC | 40.00 * 25.40 * 21.50 | |
| AD10-23S15 | |
10 | 85～305 | 100～430 | 15 | DIP | 4000VAC | 40.00 * 25.40 * 21.50 | |
| AD10-23S18 | |
10 | 85～305 | 100～430 | 18 | DIP | 4000VAC | 40.00 * 25.40 * 21.50 | |
| AD10-23S24 | |
10 | 85～305 | 100～430 | 24 | DIP | 4000VAC | 40.00 * 25.40 * 21.50 | |

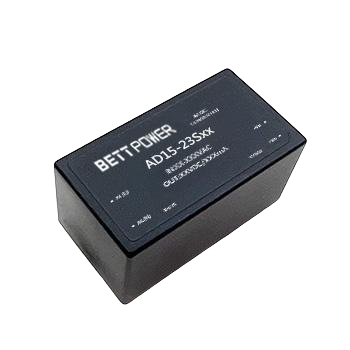

| AD15-23Sxx |  |
15 | 85～305 | 100～430 | 3.3,5,9,12,15,18,24 | DIP | 4000VAC | 45.70 * 25.40 * 21.50 | |
| AD15-23S03 | |
13.2 | 85～305 | 100～430 | 3.3 | DIP | 4000VAC | 45.70 * 25.40 * 21.50 | |
| AD15-23S05 | |
15 | 85～305 | 100～430 | 5 | DIP | 4000VAC | 45.70 * 25.40 * 21.50 | |
| AD15-23S09 | |
15 | 85～305 | 100～430 | 9 | DIP | 4000VAC | 45.70 * 25.40 * 21.50 | |
| AD15-23S12 | |
15 | 85～305 | 100～430 | 12 | DIP | 4000VAC | 45.70 * 25.40 * 21.50 | |
| AD15-23S15 | |
15 | 85～305 | 100～430 | 15 | DIP | 4000VAC | 45.70 * 25.40 * 21.50 | |
| AD15-23S18 | |
15 | 85～305 | 100～430 | 18 | DIP | 4000VAC | 45.70 * 25.40 * 21.50 | |
| AD15-23S24 | |
15 | 85～305 | 100～430 | 24 | DIP | 4000VAC | 45.70 * 25.40 * 21.50 | |

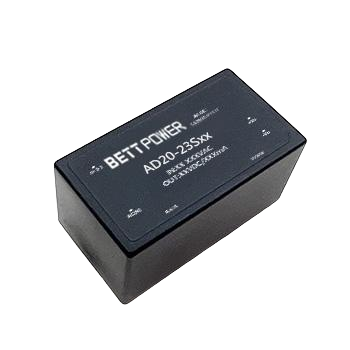

| AD20-23Sxx |  |
20 | 85～305 | 100～430 | 3.3,5,9,12,15,18,24 | DIP | 4000VAC | 52.40 * 27.20 * 24.00 | |
| AD20-23S03 | |
14.85 | 85～305 | 100～430 | 3.3 | DIP | 4000VAC | 52.40 * 27.20 * 24.00 | |
| AD20-23S05 | |
20 | 85～305 | 100～430 | 5 | DIP | 4000VAC | 52.40 * 27.20 * 24.00 | |
| AD20-23S09 | |
20 | 85～305 | 100～430 | 9 | DIP | 4000VAC | 52.40 * 27.20 * 24.00 | |
| AD20-23S12 | |
20 | 85～305 | 100～430 | 12 | DIP | 4000VAC | 52.40 * 27.20 * 24.00 | |
| AD20-23S15 | |
20 | 85～305 | 100～430 | 15 | DIP | 4000VAC | 52.40 * 27.20 * 24.00 | |
| AD20-23S18 | |
20 | 85～305 | 100～430 | 18 | DIP | 4000VAC | 52.40 * 27.20 * 24.00 | |
| AD20-23S24 | |
20 | 85～305 | 100～430 | 24 | DIP | 4000VAC | 52.40 * 27.20 * 24.00 | |

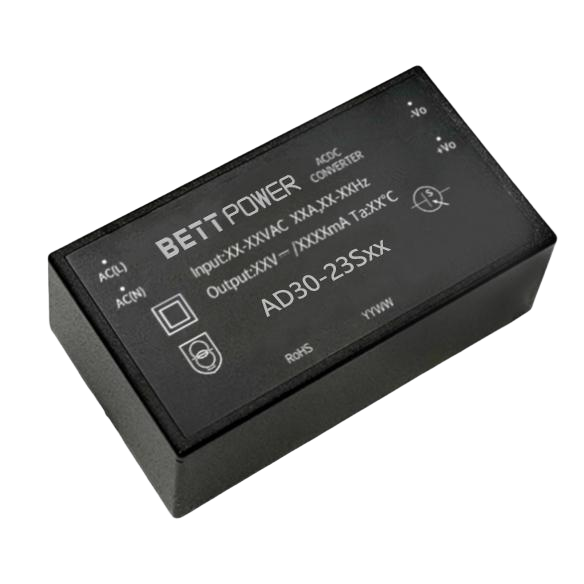

| AD30-23Sxx |  |
30 | 85～305 | 100～430 | 3.3,5,9,12,15,18,24,48 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |
| AD30-23S03 | |
19.8 | 85～305 | 100～430 | 3.3 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |
| AD30-23S05 | |
30 | 85～305 | 100～430 | 5 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |
| AD30-23S09 | |
30 | 85～305 | 100～430 | 9 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |
| AD30-23S12 | |
30 | 85～305 | 100～430 | 12 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |
| AD30-23S15 | |
30 | 85～305 | 100～430 | 15 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |
| AD30-23S18 | |
30 | 85～305 | 100～430 | 18 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |
| AD30-23S24 | |
31 | 85～305 | 100～430 | 24 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |
| AD30-23S48 | |
30 | 85～305 | 100～430 | 48 | DIP | 4000VAC | 69.50 * 39.00 * 24.00 | |

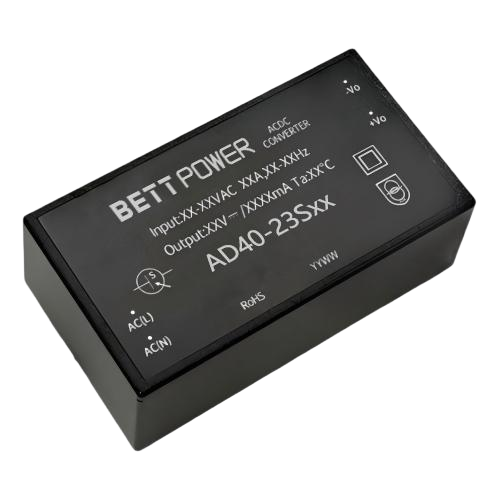

| AD40-23Sxx |  |
40 | 85～305 | 100～430 | 5,9,12,15,18,24,48 | DIP | 4200VAC | 69.50 * 39.00 * 24.00 | |
| AD40-23S05 | |
35 | 85～305 | 100～430 | 5 | DIP | 4200VAC | 69.50 * 39.00 * 24.00 | |
| AD40-23S09 | |
36 | 85～305 | 100～430 | 9 | DIP | 4200VAC | 69.50 * 39.00 * 24.00 | |
| AD40-23S12 | |
40 | 85～305 | 100～430 | 12 | DIP | 4200VAC | 69.50 * 39.00 * 24.00 | |
| AD40-23S15 | |
40 | 85～305 | 100～430 | 15 | DIP | 4200VAC | 69.50 * 39.00 * 24.00 | |
| AD40-23S18 | |
40 | 85～305 | 100～430 | 18 | DIP | 4200VAC | 69.50 * 39.00 * 24.00 | |
| AD40-23S24 | |
40 | 85～305 | 100～430 | 24 | DIP | 4200VAC | 69.50 * 39.00 * 24.00 | |
| AD40-23S48 | |
40 | 85～305 | 100～430 | 48 | DIP | 4200VAC | 69.50 * 39.00 * 24.00 | |

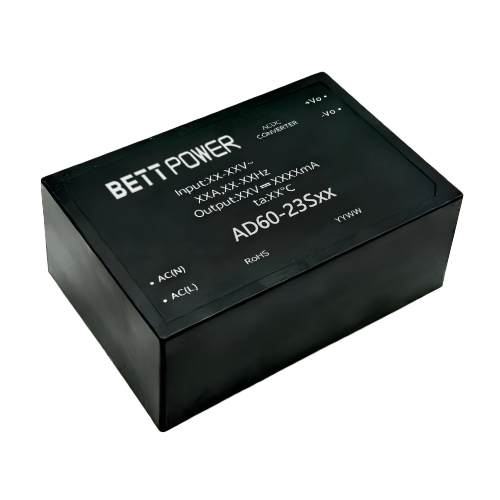

| AD60-23Sxx |  |
60 | 85～305 | 100～430 | 5,12,15,24,48 | DIP | 4200VAC | 70.00 * 48.00 * 27.00 | |
| AD60-23S05 | |
50 | 85～305 | 100～430 | 5 | DIP | 4200VAC | 70.00 * 48.00 * 27.00 | |
| AD60-23S12 | |
60 | 85～305 | 100～430 | 12 | DIP | 4200VAC | 70.00 * 48.00 * 27.00 | |
| AD60-23S15 | |
60 | 85～305 | 100～430 | 15 | DIP | 4200VAC | 70.00 * 48.00 * 27.00 | |
| AD60-23S24 | |
60 | 85～305 | 100～430 | 24 | DIP | 4200VAC | 70.00 * 48.00 * 27.00 | |
| AD60-23S48 | |
60 | 85～305 | 100～430 | 48 | DIP | 4200VAC | 70.00 * 48.00 * 27.00 |
* For reference only. The detailed info please refer to the datasheet.
