Home
> Product
> DC-DC Wide Voltage Input And Stable Output (1-500W)
> 1:1 DIP Package V-MD Series (6-40W)
FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|

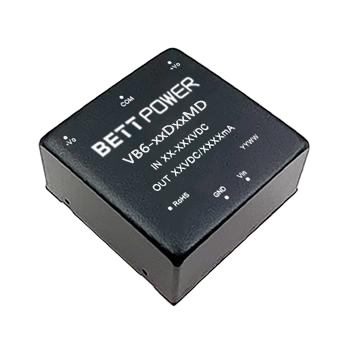

| VB6-xxDxxMD |  |
6 | 9～75 | ±5,±12,±15,±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24D05MD | |
6 | 9～36 | ±5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24D12MD | |
6 | 9～36 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24D15MD | |
6 | 9～36 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24D24MD | |
6 | 9～36 | ±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-48D05MD | |
6 | 18～75 | ±5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-48D12MD | |
6 | 18～75 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-48D15MD | |
6 | 18～75 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |

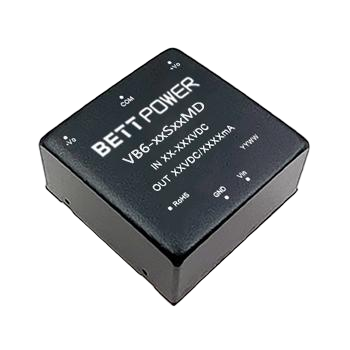

| VB6-xxSxxMD |  |
6 | 9～75 | 3.3,5,9,12,15,24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24S03MD | |
6 | 9～36 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-48S03MD | |
6 | 18～75 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24S05MD | |
6 | 9～36 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-48S05MD | |
6 | 18～75 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24S09MD | |
6 | 9～36 | 9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24S12MD | |
6 | 9～36 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-48S12MD | |
6 | 18～75 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24S15MD | |
6 | 9～36 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-48S15MD | |
6 | 18～75 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-24S24MD | |
6 | 9～36 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB6-48S24MD | |
6 | 18～75 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |

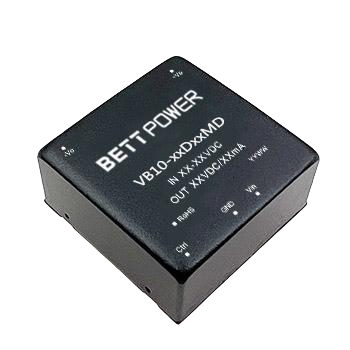

| VB10-xxDxxMD |  |
10 | 9～75 | ±5,±9,±12,±15,±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24D05MD | |
10 | 9～36 | ±5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24D09MD | |
10 | 9～36 | ±9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24D12MD | |
10 | 9～36 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24D15MD | |
10 | 9～36 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24D24MD | |
10 | 9～36 | ±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48D05MD | |
10 | 18～75 | ±5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48D12MD | |
10 | 18～75 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48D15MD | |
10 | 18～75 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48D24MD | |
10 | 18～75 | ±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |

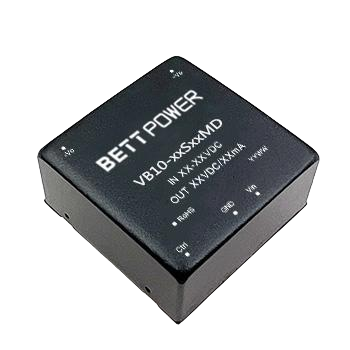

| VB10-xxSxxMD |  |
10 | 9～75 | 3.3,5,9,12,15,24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24S03MD | |
10 | 9～36 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48S03MD | |
10 | 18～75 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24S05MD | |
10 | 9～36 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48S05MD | |
10 | 18～75 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24S09MD | |
10 | 9～36 | 9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24S12MD | |
10 | 9～36 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48S12MD | |
10 | 18～75 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24S15MD | |
10 | 9～36 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48S15MD | |
10 | 18～75 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-24S24MD | |
10 | 9～36 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB10-48S24MD | |
10 | 18～75 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-xxDxxMD |  |
15 | 9～75 | ±3.3,±5,±6,±9,±12,±15,±18,±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24D03MD | |
15 | 9～36 | ±3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24D05MD | |
15 | 9～36 | ±5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24D09MD | |
15 | 9～36 | ±9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24D12MD | |
15 | 9～36 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24D15MD | |
15 | 9～36 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24D18MD | |
15 | 9～36 | ±18 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24D24MD | |
15 | 9～36 | ±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48D03MD | |
15 | 18～75 | ±3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48D05MD | |
15 | 18～75 | ±5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48D06MD | |
15 | 18～75 | ±6 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48D09MD | |
15 | 18～75 | ±9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48D12MD | |
15 | 18～75 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48D15MD | |
15 | 18～75 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48D18MD | |
15 | 18～75 | ±18 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48D24MD | |
15 | 18～75 | ±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-xxSxxMD |  |
15 | 9～75 | 3.3,5,6,9,12,15,18,24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24S03MD | |
15 | 9～36 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48S03MD | |
15 | 18～75 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24S05MD | |
15 | 9～36 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48S05MD | |
15 | 18～75 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24S06MD | |
15 | 9～36 | 6 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48S06MD | |
15 | 18～75 | 6 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24S09MD | |
15 | 9～36 | 9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48S09MD | |
15 | 18～75 | 9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24S12MD | |
15 | 9～36 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48S12MD | |
15 | 18～75 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24S15MD | |
15 | 9～36 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48S15MD | |
15 | 18～75 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24S18MD | |
15 | 9～36 | 18 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-24S24MD | |
15 | 9～36 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB15-48S24MD | |
15 | 18～75 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-xxDxxMD |  |
20 | 9～75 | ±3.3,±5,±6,±9,±12,±15,±18,±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24D03MD | |
20 | 9～36 | ±3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24D05MD | |
20 | 9～36 | ±5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24D06MD | |
20 | 9～36 | ±6 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24D09MD | |
20 | 9～36 | ±9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24D12MD | |
20 | 9～36 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24D15MD | |
20 | 9～36 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24D18MD | |
20 | 9～36 | ±18 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24D24MD | |
20 | 9～36 | ±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48D03MD | |
20 | 18～75 | ±3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48D05MD | |
20 | 18～75 | ±5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48D09MD | |
20 | 18～75 | ±9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48D12MD | |
20 | 18～75 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48D15MD | |
20 | 18～75 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48D18MD | |
20 | 18～75 | ±18 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48D24MD | |
20 | 18～75 | ±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |

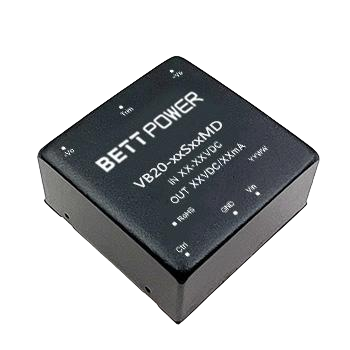

| VB20-xxSxxMD |  |
20 | 9～75 | 3.3,5,6,9,12,15,18,24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24S03MD | |
20 | 9～36 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48S03MD | |
20 | 18～75 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24S05MD | |
20 | 9～36 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48S05MD | |
20 | 18～75 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24S06MD | |
20 | 9～36 | 6 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48S06MD | |
20 | 18～75 | 6 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24S09MD | |
20 | 9～36 | 9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48S09MD | |
20 | 18～75 | 9 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24S12MD | |
20 | 9～36 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48S12MD | |
20 | 18～75 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24S15MD | |
20 | 9～36 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48S15MD | |
20 | 18～75 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24S18MD | |
20 | 9～36 | 18 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48S18MD | |
20 | 18～75 | 18 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-24S24MD | |
20 | 9～36 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB20-48S24MD | |
20 | 18～75 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-xxDxxMD |  |
30 | 9～36 | ±12,±15,±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24D12MD | |
30 | 9～36 | ±12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24D15MD | |
30 | 9～36 | ±15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24D24MD | |
30 | 9～36 | ±24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-xxSxxMD |  |
30 | 9～75 | 3.3,5,6,12,15,24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24S03MD | |
30 | 9～36 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-48S03MD | |
30 | 18～75 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24S05MD | |
30 | 9～36 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-48S05MD | |
30 | 18～75 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24S06MD | |
30 | 9～36 | 6 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24S12MD | |
30 | 9～36 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-48S12MD | |
30 | 18～75 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24S15MD | |
30 | 9～36 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-48S15MD | |
30 | 18～75 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-24S24MD | |
30 | 9～36 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB30-48S24MD | |
30 | 18～75 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-xxSxxMD |  |
40 | 9～75 | 3.3,5,12,15,24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-24S03MD | |
40 | 9～36 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-48S03MD | |
40 | 18～75 | 3.3 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-24S05MD | |
40 | 9～36 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-48S05MD | |
40 | 18～75 | 5 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-24S12MD | |
40 | 9～36 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-48S12MD | |
40 | 18～75 | 12 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-24S15MD | |
40 | 9～36 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-48S15MD | |
40 | 18～75 | 15 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-24S24MD | |
40 | 9～36 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-24S28MD | |
40 | 9～36 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-48S24MD | |
40 | 18～75 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 | |
| VB40-48S28MD | |
40 | 18～75 | 24 | 1:1DIP | 1500VDC | 25.40 * 25.40 * 12.00 |
* For reference only. The detailed info please refer to the datasheet.
Tel：020-32166196
Email：info@bettpower.com
Address：Building A1, No.1 Doutang Road, Huangpu District, Guangzhou City, Guangdong Province
- Product
- AC/DC Power Module
- DC/DC Power Module
- Support
- Application
- Sample Request
WeChat
Sample
Tel
Email
TOP
