> DC-DC Wide Voltage Input And Stable Output (1-500W)
> 0.5 * 0.5/1 Package V-SMD Series (5-20W)
FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|
| VB5-xxDxxSMD |  |
5 | 9～40 | ±3.3,±5,±12,±15 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24D03SMD | |
5 | 9～40 | ±3.3 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24D05SMD | |
5 | 9～40 | ±5 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24D12SMD | |
5 | 9～40 | ±12 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24D15SMD | |
5 | 9～40 | ±15 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-xxSxxSMD |  |
5 | 9～40 | 3.3,5,6,12,15,24,28 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24S03SMD | |
5 | 9～40 | 3.3 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24S05SMD | |
5 | 9～40 | 5 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24S06SMD | |
5 | 9～40 | 6 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24S12SMD | |
5 | 9～40 | 12 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24S15SMD | |
5 | 9～40 | 15 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24S24SMD | |
5 | 9～40 | 24 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB5-24S28SMD | |
5 | 9～40 | 28 | 0.5:0.5DIP | 1500VDC | 12.70 * 12.70 * 10.80 | |
| VB15-xxDxxHMD |  |
15 | 9～40 | ±15 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB15-24D15HMD | |
15 | 9～40 | ±15 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB15-xxSxxHMD |  |
15 | 9～40 | 5,12,15,24,28 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB15-24S05HMD | |
15 | 9～40 | 5 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB15-24S12HMD | |
15 | 9～40 | 12 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB15-24S15HMD | |
15 | 9～40 | 15 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB15-24S24HMD | |
15 | 9～40 | 24 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB15-24S28HMD | |
15 | 9～40 | 28 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |

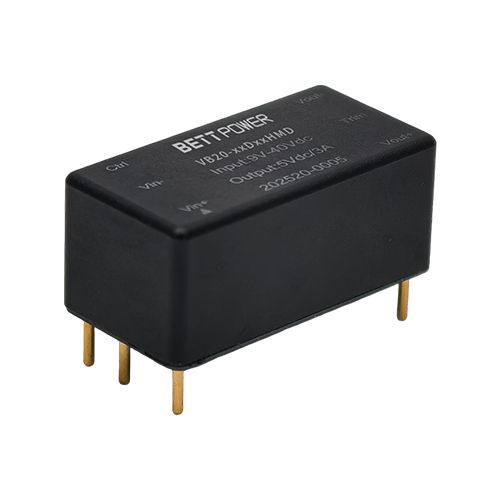

| VB20-xxDxxHMD |  |
20 | 16～40 | ±12,±15 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB20-28D12HMD | |
20 | 16～40 | ±12 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB20-28D15HMD | |
20 | 16～40 | ±15 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB20-xxSxxHMD |  |
20 | 16～40 | 5,12,15,24,28 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB20-28S05HMD | |
20 | 16～40 | 5 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB20-28S12HMD | |
20 | 16～40 | 12 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB20-28S15HMD | |
20 | 16～40 | 15 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB20-28S24HMD | |
20 | 16～40 | 24 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 | |
| VB20-28S28HMD | |
20 | 16～40 | 28 | 0.5:1DIP | 1500VDC | 25.40 * 12.70 * 10.80 |
* For reference only. The detailed info please refer to the datasheet.
