FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|

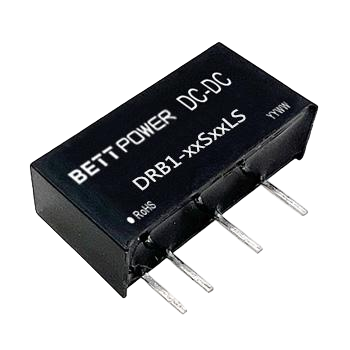

| DRB1-xxSxxLS |  |
1 | 3.3,5,9,12,24 | 3.3,5,9,12,24 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-03S03LS | |
1 | 3.3 | 3.3 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-05S03LS | |
1 | 5 | 3.3 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-12S03LS | |
1 | 12 | 3.3 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-24S03LS | |
1 | 24 | 3.3 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-03S05LS | |
1 | 3.3 | 5 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-05S05LS | |
1 | 5 | 5 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-12S05LS | |
1 | 12 | 5 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-24S05LS | |
1 | 24 | 5 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-09S09LS | |
1 | 9 | 9 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-05S12LS | |
1 | 5 | 12 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-12S12LS | |
1 | 12 | 12 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-24S12LS | |
1 | 24 | 12 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-05S15LS | |
1 | 5 | 15 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |
| DRB1-24S15LS | |
1 | 24 | 15 | SIP6 | 1500VDC | 19.60 * 10.10 * 6.00 | |

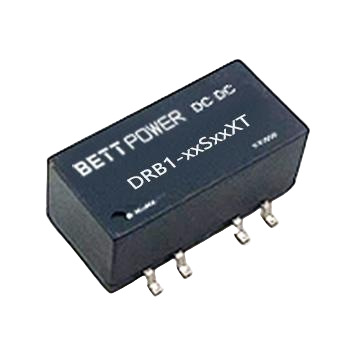

| DRB1-xxSxxXT |  |
1 | 5,12,24 | 3.3,5,9,12,15,24 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-05S03XT | |
1 | 5 | 3.3 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-12S03XT | |
1 | 12 | 3.3 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-24S03XT | |
1 | 24 | 3.3 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-05S05XT | |
1 | 5 | 5 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-12S05XT | |
1 | 12 | 5 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-24S05XT | |
1 | 24 | 5 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-05S09XT | |
1 | 5 | 9 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-05S12XT | |
1 | 5 | 12 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-12S12XT | |
1 | 12 | 12 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-24S12XT | |
1 | 24 | 12 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-05S15XT | |
1 | 5 | 15 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-24S15XT | |
1 | 24 | 15 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |
| DRB1-05S24XT | |
1 | 5 | 24 | SMD10 | 1500VDC | 15.24 * 11.40 * 7.25 | |

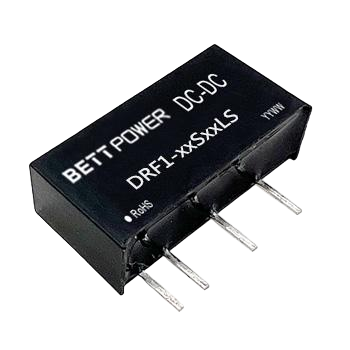

| DRF1-xxSxxLS |  |
1 | 3.3,5,9,12,24 | 3.3,5,9,12,15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-03S03LS | |
1 | 3.3 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-05S03LS | |
1 | 5 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-12S03LS | |
1 | 12 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-24S03LS | |
1 | 24 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-03S05LS | |
1 | 3.3 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-05S05LS | |
1 | 5 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-12S05LS | |
1 | 12 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-24S05LS | |
1 | 24 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-09S09LS | |
1 | 9 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-05S12LS | |
1 | 5 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-12S12LS | |
1 | 12 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-24S12LS | |
1 | 24 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-05S15LS | |
1 | 5 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DRF1-24S15LS | |
1 | 24 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |

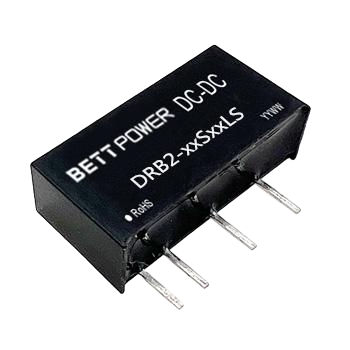

| DRB2-xxSxxLS |  |
2 | 5,12,24 | 3.3,5,12 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| DRB2-05S03LS | |
2 | 5 | 3.3 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| DRB2-12S03LS | |
2 | 12 | 3.3 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| DRB2-24S03LS | |
2 | 24 | 3.3 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| DRB2-05S05LS | |
2 | 5 | 5 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| DRB2-12S05LS | |
2 | 12 | 5 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| DRB2-24S05LS | |
2 | 24 | 5 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| DRB2-12S12LS | |
2 | 12 | 12 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |
| DRB2-24S12LS | |
2 | 24 | 12 | SIP6 | 1500VDC | 19.60 * 10.10 * 7.05 | |

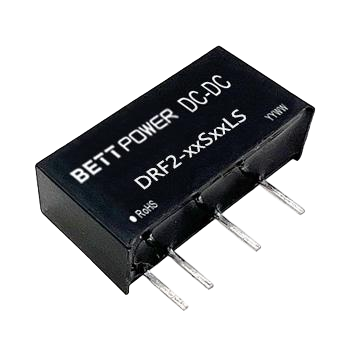

| DRF2-xxSxxLS |  |
2 | 5,12,24 | 3.3,5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DRF2-05S03LS | |
2 | 5 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DRF2-12S03LS | |
2 | 12 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DRF2-24S03LS | |
2 | 24 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DRF2-05S05LS | |
2 | 5 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DRF2-12S05LS | |
2 | 12 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DRF2-24S05LS | |
2 | 24 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 |
* For reference only. The detailed info please refer to the datasheet.
