Non isolated N78 series (500-2000mA)_Industrial power module manufacturer

FilterPlease refer to the list on the right for the query results.

Max Current：

Vin(VDC)：

Vout(VDC)：

Package：

Dimension(mm)：

Product seriesClick on the series name/specification book to view the relevant model information.

Series	Max Current	Vin(VDC)	Vout(VDC)	Package	Dimension(mm)
▶ N78Uxx-500	500	9～90	3.3,5,6.5,9,12,15,24	SIP3	11.50 * 9.00 * 17.50
N78U03-500	500	9～90	3.3	SIP3	11.50 * 9.00 * 17.50
N78U05-500	500	9～90	5	SIP3	11.50 * 9.00 * 17.50
N78UX6-500	500	9～90	6.5	SIP3	11.50 * 9.00 * 17.50
N78U09-500	500	14～90	9	SIP3	11.50 * 9.00 * 17.50
N78U12-500	500	18～90	12	SIP3	11.50 * 9.00 * 17.50
N78U15-500	500	20～90	15	SIP3	11.50 * 9.00 * 17.50
N78U24-300	300	36～90	24	SIP3	11.50 * 9.00 * 17.50

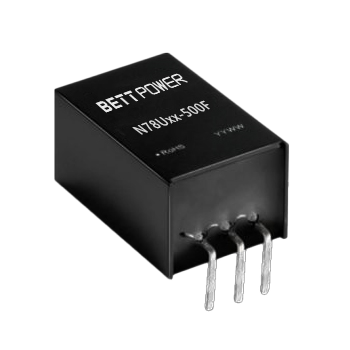

▶ N78Uxx-500F	500	9～90	3.3,5,6.5,9,12,15,24	SIP3	19.00 * 11.50 * 9.00
N78U03-500F	500	9～90	3.3	SIP3	19.00 * 11.50 * 9.00
N78U05-500F	500	9～90	5	SIP3	19.00 * 11.50 * 9.00
N78UX6-500F	500	9～90	6.5	SIP3	19.00 * 11.50 * 9.00
N78U09-500F	500	14～90	9	SIP3	19.00 * 11.50 * 9.00
N78U12-500F	500	18～90	12	SIP3	19.00 * 11.50 * 9.00
N78U15-500F	500	20～90	15	SIP3	19.00 * 11.50 * 9.00
N78U24-300F	300	36～90	24	SIP3	19.00 * 11.50 * 9.00
▶ N78xx-500	500	4.75～36	3.3,5,9,12,15	SIP3	11.60 * 10.16 * 7.55
N7803-500	500	4.75-36	3.3	SIP3	11.60 * 10.16 * 7.55
N7805-500	500	6.5-36	5	SIP3	11.60 * 10.16 * 7.55
N7809-500	500	12-36	9	SIP3	11.60 * 10.16 * 7.55
N7812-500	500	15-36	12	SIP3	11.60 * 10.16 * 7.55
N7815-500	500	19-36	15	SIP3	11.60 * 10.16 * 7.55

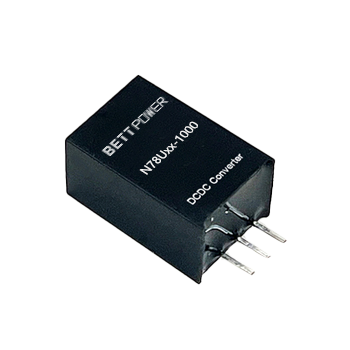

▶ N78Uxx-1000	1000	9～75	3.3,5,6.5,9,12,15,24	SIP3	11.50 * 9.00 * 17.50
N78U03-1000	1000	9～75	3.3	SIP3	11.50 * 9.00 * 17.50
N78U05-1000	1000	9～75	5	SIP3	11.50 * 9.00 * 17.50
N78UX6-1000	1000	9～75	6.5	SIP3	11.50 * 9.00 * 17.50
N78U09-1000	1000	14～75	9	SIP3	11.50 * 9.00 * 17.50
N78U12-1000	1000	17～75	12	SIP3	11.50 * 9.00 * 17.50
N78U15-1000	1000	21～75	15	SIP3	11.50 * 9.00 * 17.50
N78U24-700	700	33～75	24	SIP3	11.50 * 9.00 * 17.50
▶ N78Uxx-1000F	1000	9～75	3.3,5,6.5,9,12,15,24	SIP3	19.00 * 11.50 * 9.00
N78U03-1000F	1000	9～75	3.3	SIP3	19.00 * 11.50 * 9.00
N78U05-1000F	1000	9～75	5	SIP3	19.00 * 11.50 * 9.00
N78UX6-1000F	1000	9～75	6.5	SIP3	19.00 * 11.50 * 9.00
N78U09-1000F	1000	14～75	9	SIP3	19.00 * 11.50 * 9.00
N78U12-1000F	1000	17～75	12	SIP3	19.00 * 11.50 * 9.00
N78U15-1000F	1000	21～75	15	SIP3	19.00 * 11.50 * 9.00
N78U24-700F	700	33～75	24	SIP3	19.00 * 11.50 * 9.00

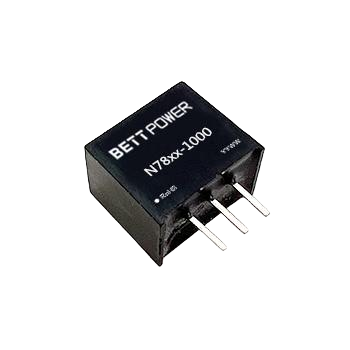

▶ N78xx-1000	1000	6～36	3.3,5,9,12,15	SIP3	11.60 * 10.16 * 7.55
N7803-1000	1000	6～36	3.3	SIP3	11.60 * 10.16 * 7.55
N7805-1000	1000	8～36	5	SIP3	11.60 * 10.16 * 7.55
N7809-1000	1000	13～36	9	SIP3	11.60 * 10.16 * 7.55
N7812-1000	1000	16～36	12	SIP3	11.60 * 10.16 * 7.55
N7815-1000	1000	20～36	15	SIP3	11.60 * 10.16 * 7.55

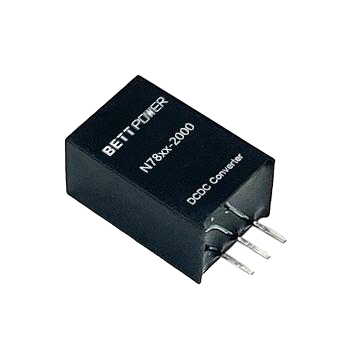

▶ N78xx-2000	2000	6～36	3.3,5,9,12,15	SIP3	11.50 * 9.00 * 17.50
N7803-2000	2000	6～36	3.3	SIP3	11.50 * 9.00 * 17.50
N7805-2000	2000	8～36	5	SIP3	11.50 * 9.00 * 17.50
N7809-2000	2000	13～36	9	SIP3	11.50 * 9.00 * 17.50
N7812-2000	2000	16～36	12	SIP3	11.50 * 9.00 * 17.50
N7815-2000	2000	18～36	15	SIP3	11.50 * 9.00 * 17.50
