FilterPlease refer to the list on the right for the query results.
Product seriesClick on the series name/specification book to view the relevant model information.
| Series | Image | Power(W) | Vin(VDC) | Vout(VDC) | Package | Isolation | Dimension(mm) | Sample |
|---|---|---|---|---|---|---|---|---|

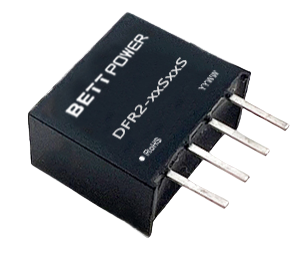

| DFR2-xxSxxS |  |
0.25 | 3.3,5,12,15,24 | 3.3,5,9,12,15,24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-03S03S | |
0.25 | 3.3 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-05S03S | |
0.25 | 5 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-12S03S | |
0.25 | 12 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-15S03S | |
0.25 | 15 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-24S03S | |
0.25 | 24 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-03S05S | |
0.25 | 3.3 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-05S05S | |
0.25 | 5 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-12S05S | |
0.25 | 12 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-15S05S | |
0.25 | 15 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-24S05S | |
0.25 | 24 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-03S09S | |
0.25 | 3.3 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-05S09S | |
0.25 | 5 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-12S09S | |
0.25 | 12 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-15S09S | |
0.25 | 15 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-24S09S | |
0.25 | 24 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-03S12S | |
0.25 | 3.3 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-05S12S | |
0.25 | 5 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-12S12S | |
0.25 | 12 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-15S12S | |
0.25 | 15 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-24S12S | |
0.25 | 24 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-03S15S | |
0.25 | 3.3 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-05S15S | |
0.25 | 5 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-12S15S | |
0.25 | 12 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-15S15S | |
0.25 | 15 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-24S15S | |
0.25 | 24 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-03S24S | |
0.25 | 3.3 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-05S24S | |
0.25 | 5 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-12S24S | |
0.25 | 12 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-15S24S | |
0.25 | 15 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DFR2-24S24S | |
0.25 | 24 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |

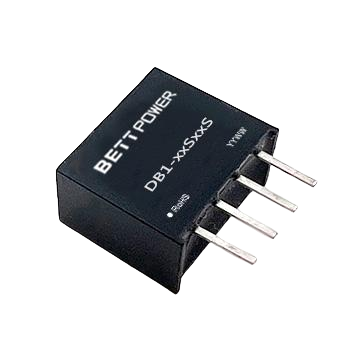

| DB1-xxSxxS |  |
1 | 3.3,5,9,12,15,24 | 3.3,5,9,12,15,24 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-03S03S | |
1 | 3.3 | 3.3 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-05S03S | |
1 | 5 | 3.3 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-12S03S | |
1 | 12 | 3.3 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-15S03S | |
1 | 15 | 3.3 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-24S03S | |
1 | 24 | 3.3 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-03S05S | |
1 | 3.3 | 5 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-05S05S | |
1 | 5 | 5 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-12S05S | |
1 | 12 | 5 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-15S05S | |
1 | 15 | 5 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-24S05S | |
1 | 24 | 5 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-03S09S | |
1 | 3.3 | 9 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-05S09S | |
1 | 5 | 9 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-09S09S | |
1 | 9 | 9 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-12S09S | |
1 | 12 | 9 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-15S09S | |
1 | 15 | 9 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-24S09S | |
1 | 24 | 9 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-03S12S | |
1 | 3.3 | 12 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-05S12S | |
1 | 5 | 12 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-12S12S | |
1 | 12 | 12 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-15S12S | |
1 | 15 | 12 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-24S12S | |
1 | 24 | 12 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-03S15S | |
1 | 3.3 | 15 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-05S15S | |
1 | 5 | 15 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-12S15S | |
1 | 12 | 15 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-15S15S | |
1 | 15 | 15 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-24S15S | |
1 | 24 | 15 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-03S24S | |
1 | 3.3 | 24 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-05S24S | |
1 | 5 | 24 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-12S24S | |
1 | 12 | 24 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-15S24S | |
1 | 15 | 24 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |
| DB1-24S24S | |
1 | 24 | 24 | SIP4 | 1500VDC | 11.60 * 6.00 * 10.20 | |

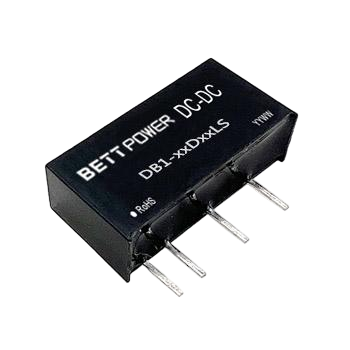

| DB1-xxDxxLS |  |
1 | 3.3,5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-03D12LS | |
1 | 3.3 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05D03LS | |
1 | 5 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05D05LS | |
1 | 5 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05D09LS | |
1 | 5 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05D12LS | |
1 | 5 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05D15LS | |
1 | 5 | ±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05D24LS | |
1 | 5 | ±24 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12D03LS | |
1 | 12 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12D05LS | |
1 | 12 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12D09LS | |
1 | 12 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12D12LS | |
1 | 12 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12D15LS | |
1 | 12 | ±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-15D05LS | |
1 | 15 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-15D12LS | |
1 | 15 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-15D15LS | |
1 | 15 | ±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24D05LS | |
1 | 24 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24D09LS | |
1 | 24 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24D12LS | |
1 | 24 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24D15LS | |
1 | 24 | ±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-xxSxxLS |  |
1 | 3.3,5,12,15,24 | 3.3,5,9,12,15,24 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-03S03LS | |
1 | 3.3 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05S03LS | |
1 | 5 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12S03LS | |
1 | 12 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24S03LS | |
1 | 24 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-03S05LS | |
1 | 3.3 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05S05LS | |
1 | 5 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12S05LS | |
1 | 12 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-15S05LS | |
1 | 15 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24S05LS | |
1 | 24 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-03S09LS | |
1 | 3.3 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05S09LS | |
1 | 5 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12S09LS | |
1 | 12 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-15S09LS | |
1 | 15 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24S09LS | |
1 | 24 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-03S12LS | |
1 | 3.3 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05S12LS | |
1 | 5 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12S12LS | |
1 | 12 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-15S12LS | |
1 | 15 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24S12LS | |
1 | 24 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-03S15LS | |
1 | 3.3 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05S15LS | |
1 | 5 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12S15LS | |
1 | 12 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-15S15LS | |
1 | 15 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24S15LS | |
1 | 24 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-05S24LS | |
1 | 5 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-12S24LS | |
1 | 12 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DB1-24S24LS | |
1 | 24 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 6.00 | |

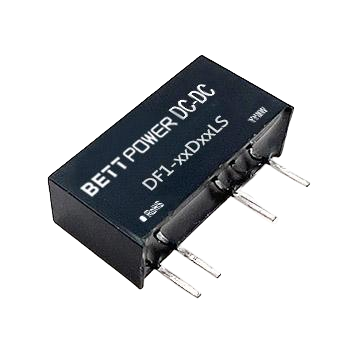

| DF1-xxDxxLS |  |
1 | 3.3,5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03D03LS | |
1 | 3.3 | ±3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03D05LS | |
1 | 3.3 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03D09LS | |
1 | 3.3 | ±9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03D12LS | |
1 | 3.3 | ±12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03D15LS | |
1 | 3.3 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03D24LS | |
1 | 3.3 | ±24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05D03LS | |
1 | 5 | ±3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05D05LS | |
1 | 5 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05D09LS | |
1 | 5 | ±9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05D12LS | |
1 | 5 | ±12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05D15LS | |
1 | 5 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05D24LS | |
1 | 5 | ±24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12D03LS | |
1 | 12 | ±3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12D05LS | |
1 | 12 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12D09LS | |
1 | 12 | ±9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12D12LS | |
1 | 12 | ±12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12D15LS | |
1 | 12 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12D24LS | |
1 | 12 | ±24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15D05LS | |
1 | 15 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15D12LS | |
1 | 15 | ±12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15D15LS | |
1 | 15 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15D24LS | |
1 | 15 | ±24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24D03LS | |
1 | 24 | ±3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24D05LS | |
1 | 24 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24D09LS | |
1 | 24 | ±9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24D12LS | |
1 | 24 | ±12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24D15LS | |
1 | 24 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24D24LS | |
1 | 24 | ±24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |

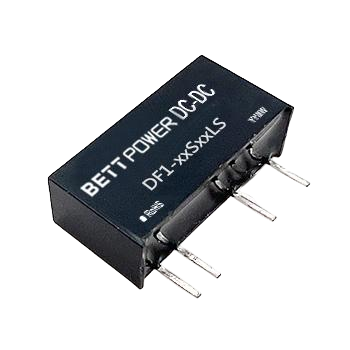

| DF1-xxSxxLS |  |
1 | 3.3,5,12,15,24 | 3.3,5,12,15,24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03S03LS | |
1 | 3.3 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05S03LS | |
1 | 5 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12S03LS | |
1 | 12 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15S03LS | |
1 | 15 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24S03LS | |
1 | 24 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03S05LS | |
1 | 3.3 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05S05LS | |
1 | 5 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12S05LS | |
1 | 12 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15S05LS | |
1 | 15 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24S05LS | |
1 | 24 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03S09LS | |
1 | 3.3 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05S09LS | |
1 | 5 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12S09LS | |
1 | 12 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15S09LS | |
1 | 15 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24S09LS | |
1 | 24 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03S12LS | |
1 | 3.3 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05S12LS | |
1 | 5 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12S12LS | |
1 | 12 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15S12LS | |
1 | 15 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24S12LS | |
1 | 24 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03S15LS | |
1 | 3.3 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05S15LS | |
1 | 5 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12S15LS | |
1 | 12 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-15S15LS | |
1 | 15 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24S15LS | |
1 | 24 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-03S24LS | |
1 | 3.3 | 24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-05S24LS | |
1 | 5 | 24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-12S24LS | |
1 | 12 | 24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-24S24LS | |
1 | 24 | 24 | SIP7 | 3000VDC | 19.60 * 10.10 * 6.00 | |
| DF1-xxSxxS |  |
1 | 3.3,5,9,12,15,24 | 3.3,5,9,12,15,24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-03S03S | |
1 | 3.3 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-05S03S | |
1 | 5 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-12S03S | |
1 | 12 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-15S03S | |
1 | 15 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-24S03S | |
1 | 24 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-03S05S | |
1 | 3.3 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-05S05S | |
1 | 5 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-12S05S | |
1 | 12 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-15S05S | |
1 | 15 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-24S05S | |
1 | 24 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-03S09S | |
1 | 3.3 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-05S09S | |
1 | 5 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-09S09S | |
1 | 9 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-12S09S | |
1 | 12 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-15S09S | |
1 | 15 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-24S09S | |
1 | 24 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-03S12S | |
1 | 3.3 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-05S12S | |
1 | 5 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-12S12S | |
1 | 12 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-15S12S | |
1 | 15 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-24S12S | |
1 | 24 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-03S15S | |
1 | 3.3 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-05S15S | |
1 | 5 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-12S15S | |
1 | 12 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-15S15S | |
1 | 15 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-24S15S | |
1 | 24 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-03S24S | |
1 | 3.3 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-05S24S | |
1 | 5 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-12S24S | |
1 | 12 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-15S24S | |
1 | 15 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF1-24S24S | |
1 | 24 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DH1-xxDxxLS |  |
1 | 5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05D03LS | |
1 | 5 | ±3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05D05LS | |
1 | 5 | ±5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05D09LS | |
1 | 5 | ±9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05D12LS | |
1 | 5 | ±12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05D15LS | |
1 | 5 | ±15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05D24LS | |
1 | 5 | ±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12D03LS | |
1 | 12 | ±3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12D05LS | |
1 | 12 | ±5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12D09LS | |
1 | 12 | ±9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12D12LS | |
1 | 12 | ±12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12D15LS | |
1 | 12 | ±15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12D24LS | |
1 | 12 | ±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15D03LS | |
1 | 15 | ±3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15D05LS | |
1 | 15 | ±5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15D09LS | |
1 | 15 | ±9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15D12LS | |
1 | 15 | ±12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15D15LS | |
1 | 15 | ±15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15D24LS | |
1 | 15 | ±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24D03LS | |
1 | 24 | ±3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24D05LS | |
1 | 24 | ±5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24D09LS | |
1 | 24 | ±9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24D12LS | |
1 | 24 | ±12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24D15LS | |
1 | 24 | ±15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24D24LS | |
1 | 24 | ±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-xxSxxLS |  |
1 | 5,12,15,24 | 3.3,5,9,12,15,24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05S03LS | |
1 | 5 | 3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12S03LS | |
1 | 12 | 3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15S03LS | |
1 | 15 | 3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24S03LS | |
1 | 24 | 3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05S05LS | |
1 | 5 | 5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12S05LS | |
1 | 12 | 5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15S05LS | |
1 | 15 | 5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24S05LS | |
1 | 24 | 5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05S09LS | |
1 | 5 | 9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12S09LS | |
1 | 12 | 9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15S09LS | |
1 | 15 | 9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24S09LS | |
1 | 24 | 9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05S12LS | |
1 | 5 | 12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12S12LS | |
1 | 12 | 12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15S12LS | |
1 | 15 | 12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24S12LS | |
1 | 24 | 12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05S15LS | |
1 | 5 | 15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12S15LS | |
1 | 12 | 15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15S15LS | |
1 | 15 | 15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24S15LS | |
1 | 24 | 15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-05S24LS | |
1 | 5 | 24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-12S24LS | |
1 | 12 | 24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-15S24LS | |
1 | 15 | 24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH1-24S24LS | |
1 | 24 | 24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |

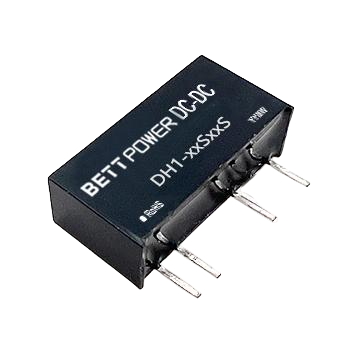

| DH1-xxSxxS |  |
1 | 3.3,5,12,24 | 3.3,5,9,12,15 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-03S03S | |
1 | 3.3 | 3.3 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-05S05S | |
1 | 5 | 3.3 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-12S05S | |
1 | 12 | 3.3 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-24S05S | |
1 | 24 | 3.3 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-03S05S | |
1 | 3.3 | 5 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-05S09S | |
1 | 5 | 5 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-24S03S | |
1 | 24 | 5 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-05S12S | |
1 | 5 | 9 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-05S03S | |
1 | 5 | 12 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-05S15S | |
1 | 5 | 12 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DH1-12S03S | |
1 | 12 | 15 | SIP7 | 6000VDC | 19.60 * 6.00 * 10.10 | |
| DB2-xxDxxLS |  |
2 | 5,12,15,24 | ±3.3,±5,±9,±12,±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05D03LS | |
2 | 5 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05D05LS | |
2 | 5 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05D09LS | |
2 | 5 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05D12LS | |
2 | 5 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05D15LS | |
2 | 5 | ±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12D03LS | |
2 | 12 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12D05LS | |
2 | 12 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12D09LS | |
2 | 12 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12D12LS | |
2 | 12 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12D15LS | |
2 | 12 | ±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15D03LS | |
2 | 15 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15D05LS | |
2 | 15 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15D09LS | |
2 | 15 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15D12LS | |
2 | 15 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15D15LS | |
2 | 15 | ±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24D03LS | |
2 | 24 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24D05LS | |
2 | 24 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24D09LS | |
2 | 24 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24D12LS | |
2 | 24 | ±12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24D15LS | |
2 | 24 | ±15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |

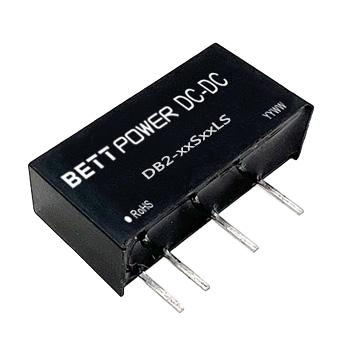

| DB2-xxSxxLS |  |
2 | 3.3,5,12,15,24 | 3.3,5,9,12,15,24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-03S03LS | |
2 | 3.3 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05S03LS | |
2 | 5 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12S03LS | |
2 | 12 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15S03LS | |
2 | 15 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24S03LS | |
2 | 24 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-03S05LS | |
2 | 3.3 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05S05LS | |
2 | 5 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12S05LS | |
2 | 12 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15S05LS | |
2 | 15 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24S05LS | |
2 | 24 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-03S09LS | |
2 | 3.3 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05S09LS | |
2 | 5 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12S09LS | |
2 | 12 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15S09LS | |
2 | 15 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24S09LS | |
2 | 24 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-03S12LS | |
2 | 3.3 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05S12LS | |
2 | 5 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12S12LS | |
2 | 12 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15S12LS | |
2 | 15 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24S12LS | |
2 | 24 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05S15LS | |
2 | 5 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12S15LS | |
2 | 12 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15S15LS | |
2 | 15 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24S15LS | |
2 | 24 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-05S24LS | |
2 | 5 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-12S24LS | |
2 | 12 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-15S24LS | |
2 | 15 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB2-24S24LS | |
2 | 24 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-xxDxxLS |  |
2 | 5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05D03LS | |
2 | 5 | ±3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05D05LS | |
2 | 5 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05D09LS | |
2 | 5 | ±9 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05D12LS | |
2 | 5 | ±12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05D15LS | |
2 | 5 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12D03LS | |
2 | 12 | ±3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12D05LS | |
2 | 12 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12D09LS | |
2 | 12 | ±9 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12D12LS | |
2 | 12 | ±12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12D15LS | |
2 | 12 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-15D05LS | |
2 | 15 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-15D15LS | |
2 | 15 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24D03LS | |
2 | 24 | ±3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24D05LS | |
2 | 24 | ±5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24D09LS | |
2 | 24 | ±9 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24D12LS | |
2 | 24 | ±12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24D15LS | |
2 | 24 | ±15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24D24LS | |
2 | 24 | ±24 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |

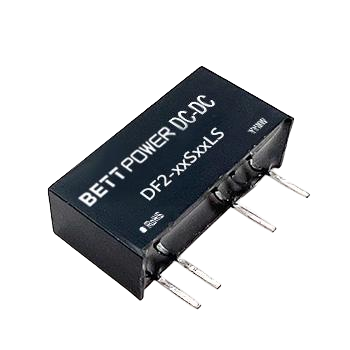

| DF2-xxSxxLS |  |
2 | 3.3,5,12,15,24 | 3.3,5,9,12,15,24 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-03S03LS | |
2 | 3.3 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05S03LS | |
2 | 5 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12S03LS | |
2 | 12 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24S03LS | |
2 | 24 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-03S05LS | |
2 | 3.3 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05S05LS | |
2 | 5 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12S05LS | |
2 | 12 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-15S05LS | |
2 | 15 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24S05LS | |
2 | 24 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-03S09LS | |
2 | 3.3 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05S09LS | |
2 | 5 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12S09LS | |
2 | 12 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24S09LS | |
2 | 24 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-03S12LS | |
2 | 3.3 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05S12LS | |
2 | 5 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12S12LS | |
2 | 12 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24S12LS | |
2 | 24 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05S15LS | |
2 | 5 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12S15LS | |
2 | 12 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-15S15LS | |
2 | 15 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24S15LS | |
2 | 24 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-05S24LS | |
2 | 5 | 24 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-12S24LS | |
2 | 12 | 24 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-24S24LS | |
2 | 24 | 24 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF2-xxSxxS |  |
2 | 3.3,5,12,15,24 | 3.3,5,9,12,15,24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-03S03S | |
2 | 3.3 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-05S03S | |
2 | 5 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-12S03S | |
2 | 12 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-15S03S | |
2 | 15 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-24S03S | |
2 | 24 | 3.3 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-03S05S | |
2 | 3.3 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-05S05S | |
2 | 5 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-12S05S | |
2 | 12 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-15S05S | |
2 | 15 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-24S05S | |
2 | 24 | 5 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-03S09S | |
2 | 3.3 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-05S09S | |
2 | 5 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-12S09S | |
2 | 12 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-15S09S | |
2 | 15 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-24S09S | |
2 | 24 | 9 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-03S12S | |
2 | 3.3 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-05S12S | |
2 | 5 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-12S12S | |
2 | 12 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-15S12S | |
2 | 15 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-24S12S | |
2 | 24 | 12 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-03S15S | |
2 | 3.3 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-05S15S | |
2 | 5 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-12S15S | |
2 | 12 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-15S15S | |
2 | 15 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-24S15S | |
2 | 24 | 15 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-03S24S | |
2 | 3.3 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-05S24S | |
2 | 5 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-12S24S | |
2 | 12 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-15S24S | |
2 | 15 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DF2-24S24S | |
2 | 24 | 24 | SIP4 | 3000VDC | 11.60 * 6.00 * 10.20 | |
| DH2-xxDxxLS |  |
2 | 5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05D03LS | |
2 | 5 | ±3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05D05LS | |
2 | 5 | ±5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05D09LS | |
2 | 5 | ±9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05D12LS | |
2 | 5 | ±12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05D15LS | |
2 | 5 | ±15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05D24LS | |
2 | 5 | ±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12D03LS | |
2 | 12 | ±3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12D05LS | |
2 | 12 | ±5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12D09LS | |
2 | 12 | ±9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12D12LS | |
2 | 12 | ±12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12D15LS | |
2 | 12 | ±15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15D03LS | |
2 | 15 | ±3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15D05LS | |
2 | 15 | ±5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15D09LS | |
2 | 15 | ±9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15D12LS | |
2 | 15 | ±12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15D15LS | |
2 | 15 | ±15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15D24LS | |
2 | 15 | ±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24D03LS | |
2 | 24 | ±3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24D05LS | |
2 | 24 | ±5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24D09LS | |
2 | 24 | ±9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24D12LS | |
2 | 24 | ±12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24D15LS | |
2 | 24 | ±15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24D24LS | |
2 | 24 | ±24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |

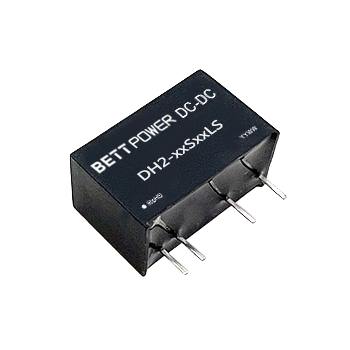

| DH2-xxSxxLS |  |
2 | 5,12,15,24 | 3.3,5,9,12,15,24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05S03LS | |
2 | 5 | 3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12S03LS | |
2 | 12 | 3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15S03LS | |
2 | 15 | 3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24S03LS | |
2 | 24 | 3.3 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05S05LS | |
2 | 5 | 5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12S05LS | |
2 | 12 | 5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15S05LS | |
2 | 15 | 5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24S05LS | |
2 | 24 | 5 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05S09LS | |
2 | 5 | 9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12S09LS | |
2 | 12 | 9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15S09LS | |
2 | 15 | 9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24S09LS | |
2 | 24 | 9 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05S12LS | |
2 | 5 | 12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12S12LS | |
2 | 12 | 12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15S12LS | |
2 | 15 | 12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24S12LS | |
2 | 24 | 12 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05S15LS | |
2 | 5 | 15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12S15LS | |
2 | 12 | 15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15S15LS | |
2 | 15 | 15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24S15LS | |
2 | 24 | 15 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-05S24LS | |
2 | 5 | 24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-12S24LS | |
2 | 12 | 24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-15S24LS | |
2 | 15 | 24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |
| DH2-24S24LS | |
2 | 24 | 24 | SIP7 | 6000VDC | 19.50 * 12.50 * 9.80 | |

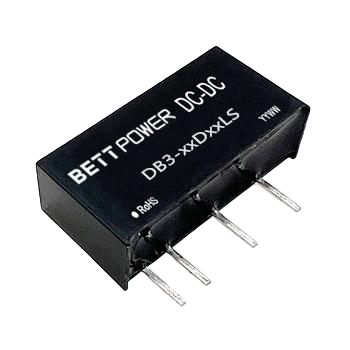

| DB3-xxDxxLS |  |
3 | 5,12,15,24 | ±3.3,±5,±9,±12,±15,±24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05D03LS | |
3 | 5 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05D05LS | |
3 | 5 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05D09LS | |
3 | 5 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05D12LS | |
3 | 5 | ± 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05D15LS | |
3 | 5 | ± 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05D24LS | |
3 | 5 | ±24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12D03LS | |
3 | 12 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12D05LS | |
3 | 12 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12D09LS | |
3 | 12 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12D12LS | |
3 | 12 | ± 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12D15LS | |
3 | 12 | ± 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12D24LS | |
3 | 12 | ±24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15D03LS | |
3 | 15 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15D05LS | |
3 | 15 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15D09LS | |
3 | 15 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15D12LS | |
3 | 15 | ± 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15D15LS | |
3 | 15 | ± 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15D24LS | |
3 | 15 | ±24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24D03LS | |
3 | 24 | ±3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24D05LS | |
3 | 24 | ±5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24D09LS | |
3 | 24 | ±9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24D12LS | |
3 | 24 | ± 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24D15LS | |
3 | 24 | ± 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24D24LS | |
3 | 24 | ±24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-xxSxxLS |  |
3 | 5,12,15,24 | 3.3,5,9,12,15,24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05S03LS | |
3 | 5 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12S03LS | |
3 | 12 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15S03LS | |
3 | 15 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24S03LS | |
3 | 24 | 3.3 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05S05LS | |
3 | 5 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12S05LS | |
3 | 12 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15S05LS | |
3 | 15 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24S05LS | |
3 | 24 | 5 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05S09LS | |
3 | 5 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12S09LS | |
3 | 12 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15S09LS | |
3 | 15 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24S09LS | |
3 | 24 | 9 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05S12LS | |
3 | 5 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12S12LS | |
3 | 12 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15S12LS | |
3 | 15 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24S12LS | |
3 | 24 | 12 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05S15LS | |
3 | 5 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12S15LS | |
3 | 12 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15S15LS | |
3 | 15 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24S15LS | |
3 | 24 | 15 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-05S24LS | |
3 | 5 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-12S24LS | |
3 | 12 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-15S24LS | |
3 | 15 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DB3-24S24LS | |
3 | 24 | 24 | SIP6 | 3000VDC | 19.60 * 10.10 * 7.05 | |

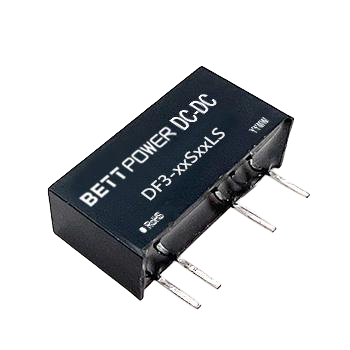

| DF3-xxSxxLS |  |
3 | 5,12,15,24 | 3.3,5,9,12,15,24 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF3-05S03LS | |
3 | 5 | 3.3 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF3-05S05LS | |
3 | 5 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF3-12S05LS | |
3 | 12 | 5 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF3-05S09LS | |
3 | 5 | 9 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF3-12S12LS | |
3 | 12 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF3-24S12LS | |
3 | 24 | 12 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF3-15S15LS | |
3 | 15 | 15 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 | |
| DF3-24S24LS | |
3 | 24 | 24 | SIP7 | 3000VDC | 19.60 * 10.10 * 7.05 |
* For reference only. The detailed info please refer to the datasheet.
Tel：020-32166196
Email：info@bettpower.com
Address：Building A1, No.1 Doutang Road, Huangpu District, Guangzhou City, Guangdong Province
- Product
- AC/DC Power Module
- DC/DC Power Module
- Support
- Application
- Sample Request
WeChat
Sample
Tel
Email
TOP
